Processed Active Sound System: 15" + 2x(6,5"+1") - 500Wrms + 2x150Wrms

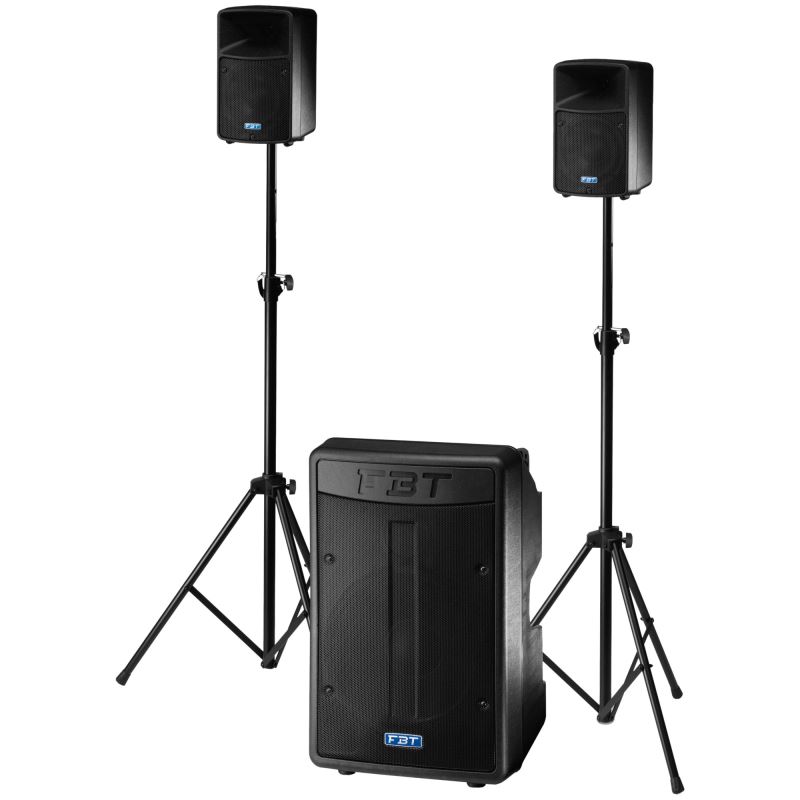

AMICO 10 USB is a completely integrated, ready-wired sound system. The mixer amplification is a 15" subwoofer and three PWM processed amplifiers are contained in a single ultra lightweight, yet sturdy polypropylene enclosure. It offers a professional mixing input channels with built-in class D power amplifiers and switch mode power supply. The system is powered by AC mains.
- Analog audio processor with 24dB electronic crossover network and ADAP (Advanced Dynamic Active Protection) for total protection of the components

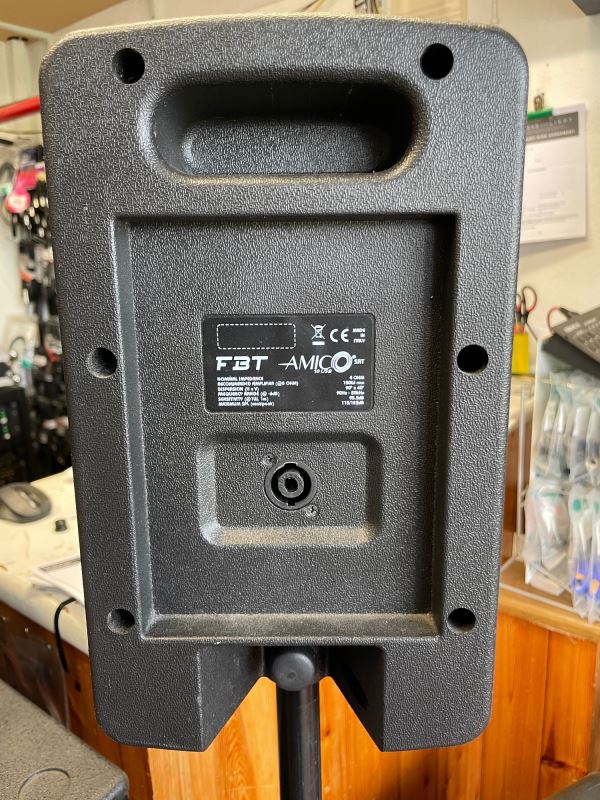

- Removable back panel for access to the satellite speakers’ storage compartment. This protects the satellite speakers and keeps them secure when transporting the complete system
- Multi-function knobs to block, unblock, and remove the cover/ lid transport handle
- A quick and easy set-up: complete system setup in less than 5 minutes! Just connect the satellite speakers to the AMICO 10USB amplifier outputs using the optional Speakon speaker cables and connect the AC power cable to an AC wall outlet
- USB input/output to play back music programs from a computer or to record from the master audio output of the AMICO 10USB to a computer - recording program
- Built-in mixing console with 6 x XLR mic inputs with phantom power supply, 2 x mono inputs and 4 x stereo input channels, 3-band EQ, 99 selectable digital effects with effects send and return controls
- 3 Class D power amplifiers with switch mode power supplies to power the subwoofer and the two satellite speakers
KEY FEATURES
- 3-way, tri-amplified Bass-Reflex system
- 14 channel mixer with 99 presets digital multi-effect and phantom power
- USB connection for music programs in play and record

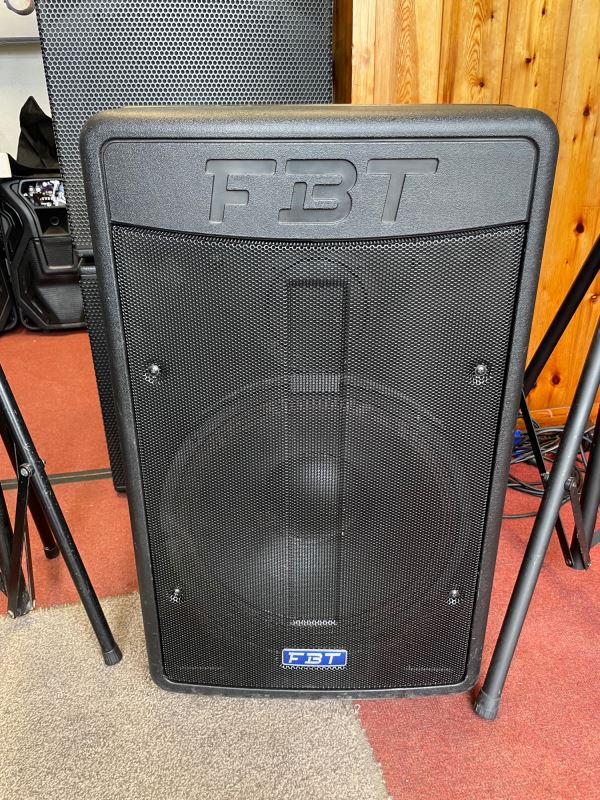

- Subwoofer: 380mm (15") high efficiency and high excursion custom woofer with a 75mm (3") voice coil

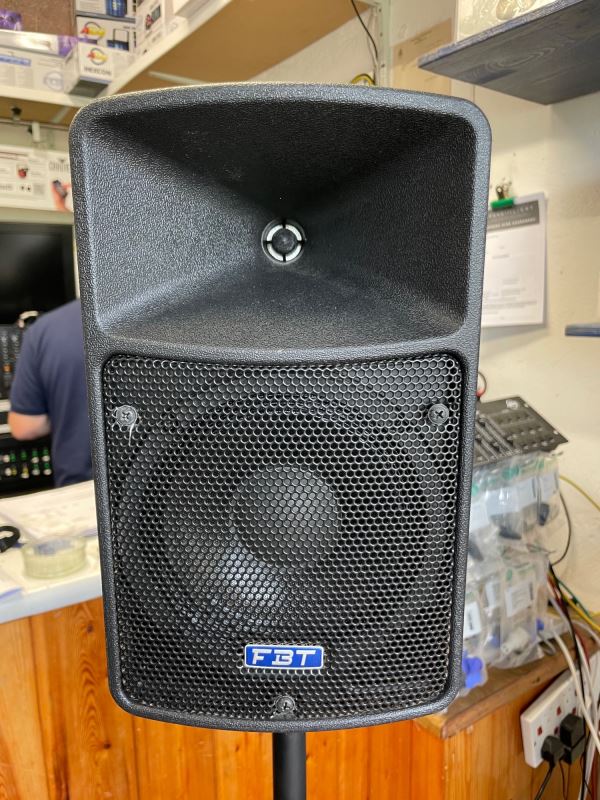

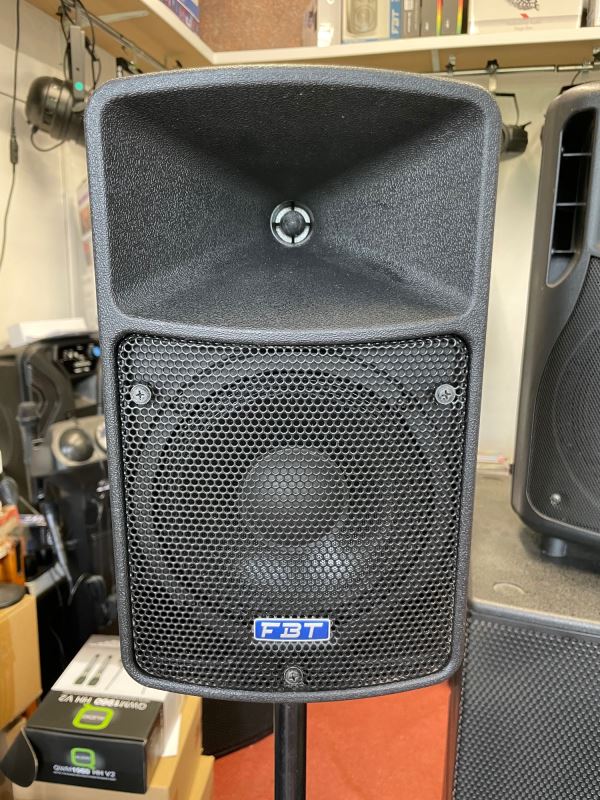

- 2 x two way satellite speakers, featuring 165mm (6.5") woofers with 38mm (1.5") voice coils, and a 25mm (1") compression driver couple to a 90°H x 60°X constant directivity horn
- 500W RMS Class D amplifier for subwoofer
- 2 x 150W RMS Class D amplifier for the satellite speakers
- Switch mode power supply
