Discontinued Text

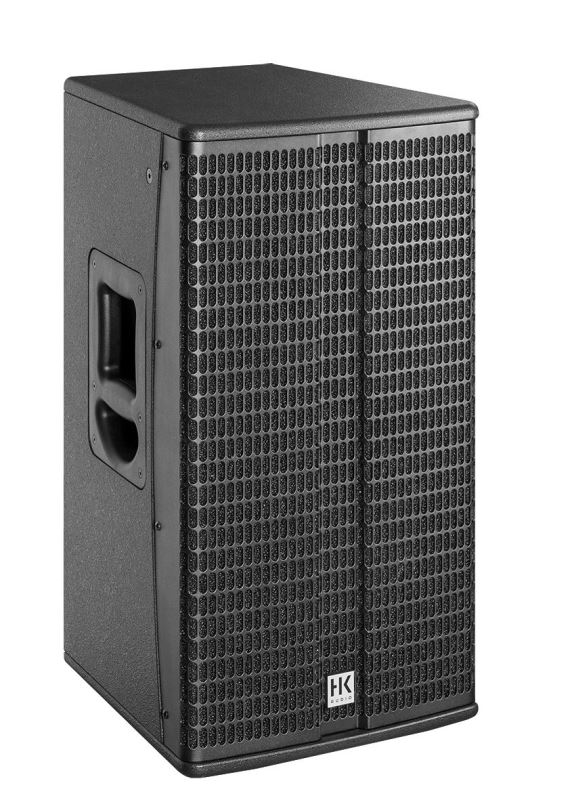

HK Audio Linear 3 112FA L3 112 FA
LAST 2 IN STOCK (EX SHOWROOM,- NO BOXES ) FULL GUARANTEE.
L3 112 FA
This active 12”/1” fullrange mid/high unit delivers 1,200 watts of class D power, and functions either as a standalone speaker or in combination with subwoofers from the LINEAR SUB series. Four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour – allow the LINEAR 3 112 FA to deliver outstanding performance and easy handling in any situation.
Facts & Features
- Packs the muscular bi-amped punch of a 1,200 W class D power amp
- Beautifully balanced, high-definition audio
- 135 dB SPL—that"s plenty of sound pressure for audiences of up to 500 (with the suitable L SUB 1500 A or L SUB 1800 A subwoofers)
- No need for sophisticated audio skills: advanced DSP technology serves up top-notch sound every time
- Intelligent Multiband Limiter ensures tonal integrity at every volume level
- FIR crossover filtering for transparent midrange
- Plenty of sound-shaping options with four EQ presets—Bass Boost, Flat (LF), Flat (MHF) and Contour
- Very low total harmonic distortion, so no listening fatigue
- System"s sound is easy to control and shape, even from the stage
- On-target, directional PA aiming to reduce reflections off walls and ceilings
Techn. Data
|
Model
|
L3 112 FA
|
| Max SPL peak | 135 dB half space (@ 10% THD) |
| Frequency response +/- 3 dB | 65 Hz – 18 kHz |
| Frequency response -10 dB | 58 Hz – 18 kHz |
| Power Rating | 1200 W |
| Amplifier | Class D - bi-amped |
| Active protection circuits | Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters |
| Low/Mid Speaker | 1x 12" |
| HF Driver | 1" |
| Horn characteristics | 90° x 55° CD horn |
| Cut-off Frequency active | 2.3 kHz FIR X-Over with 72 dB/oct. |
| Connections | 2x XLR Combo In bal., 1x Stereo RCA In, 2 x XLR Thru bal., 1x XLR Mix Out |
| Input Sensitivity | +4 dBu @ Gain center-notched |
| Sensitivity switch | Line |
