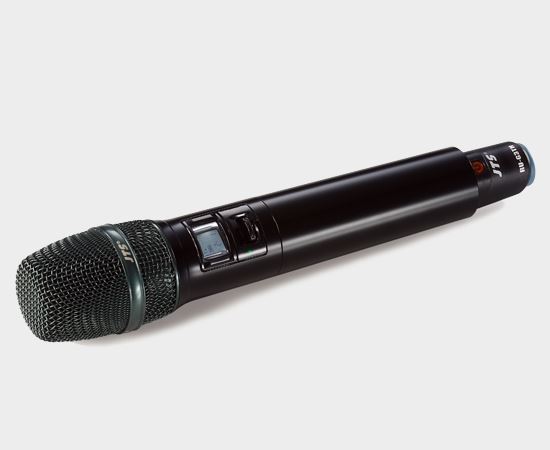

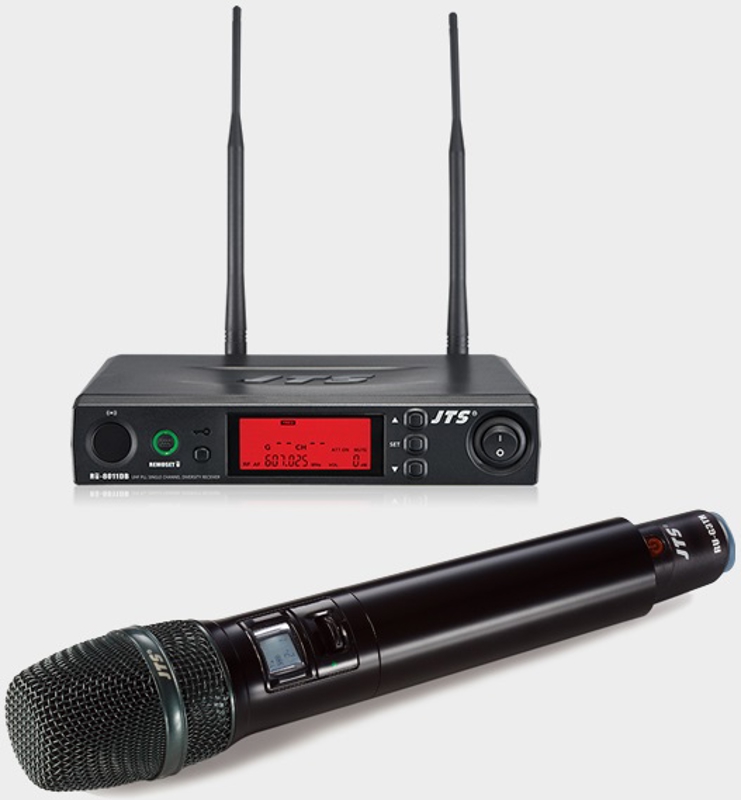

JTS RU-8011 RU-G3TH Handheld Single Channel Diversity Wireless Microphone System Radio Mic

JTS RU-8011 RU-G3TH Handheld Single Channel Diversity Wireless Microphone System Radio Mic

Suitable for vocals, conference and presentations.

SPECIFICATIONS

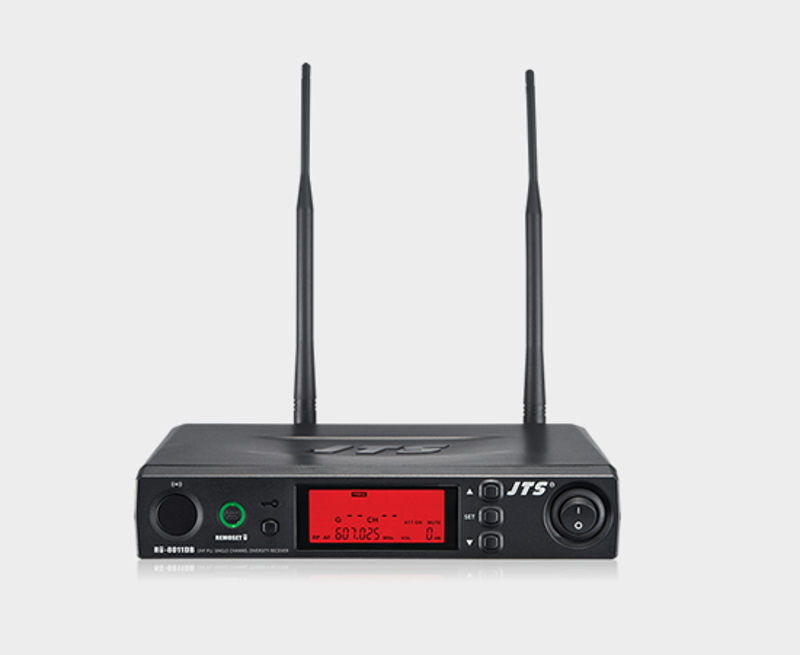

RU-8011DB

• Frequency Preparation         PLL Synthesized Control
• Carrier Frequency Range     470~960 MHz
• Frequency Setting                REMOSET U
• Receiving Mode                   Antenna Diversity
• Bandwidth                            36MHz
• S/N Ratio                             >105dB(A)
• T.H.D                                   <0.6%@1KHz
• Sensitivity                            -95dBm,S/N>80dB
• Rejection Ratio                    >80 dB
• Frequency Response          50Hz~16KHz±2dB
• Antenna Type                      BNC Socket
• Antenna Booster Power       DC12~15V/100mA
• Display                                 LCD
• Display Contents                 Group, Channel, Frequency, Battery Level, Antenna A/B,
  •                                     Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
• Controls                               Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output
• Attenuaiton                          (XLR), Frequency Scan(ON/OFF)
• Audio Output Level              Ref/ ±22.5KHz Dev@1KHz Tone
• ψ6.3 Phone Jack/ -10dBV
• XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
• Audio Output Impedance     600Ω
• SquelchPilot Tone & Noise Mute
• Output Connector                 1 independent balanced XLR and one Ø6.3mm unbalanced.
• Power Supply                        DC12~15V/300mA
• Dimension (mm)                    212.3mm(W)* 38.3mm(H)* 144mm(D)
• Notes                                     Acutal product specifications may vary depending on region

RU-850LTB

• Frequency Preparation          PLL Synthesized Control
• Carrier Frequency Range      470~960MHz
• Frequency Setting                 REMOSET U(Receive)
• RF Outpus                             Low / High
• Stability                                  <±10KHz@Fc
• Frequency Deviation            ±48KHz
• Spurious Emissions             <-50dBc
• Function                              Mute, Auto Power Off, Sensitivity Adjust, Low Battery
• Display                                LCD+LED
• Input Connector                  4P Mini XR
• Controls                              Power, Mute, Group, Channel,
• Frequency, Gain Adjust, Auto Power Off, Key
• Lock
• BatteryUM3,                       AA x2
