KAM KWM Quartet Quad 4 way radio mic system wireless UHF microphones KWMQ

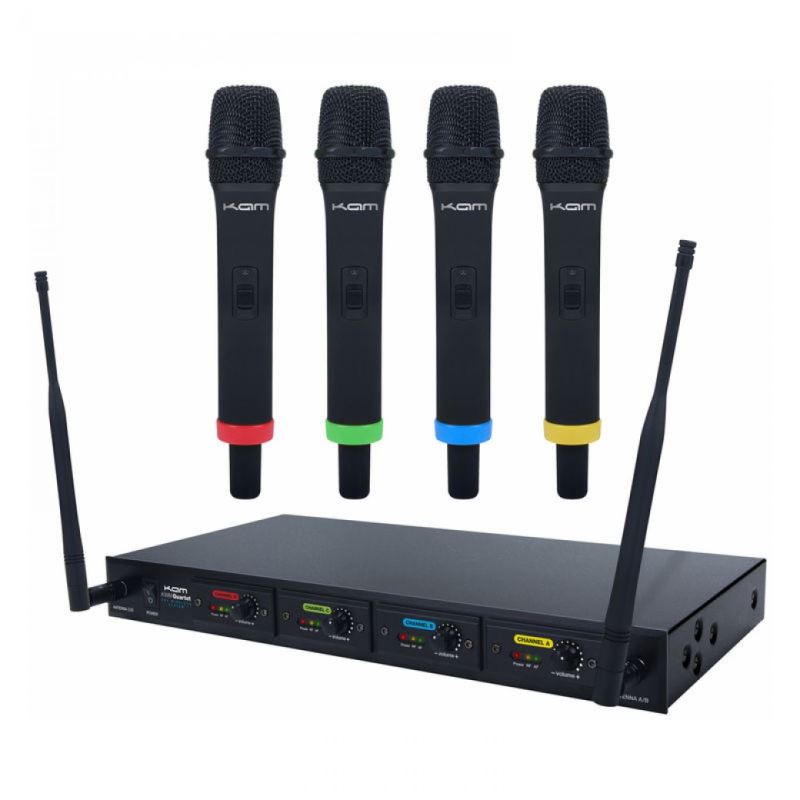

KAM KWMQ - Quartet 4 way wireless mic system

Description

• Professional 4 x USB rechargeable microphone UHF wireless system
• 19 inch rackmount modular receiver design with LED status indicators
• 2 x removable/adjustable antenna

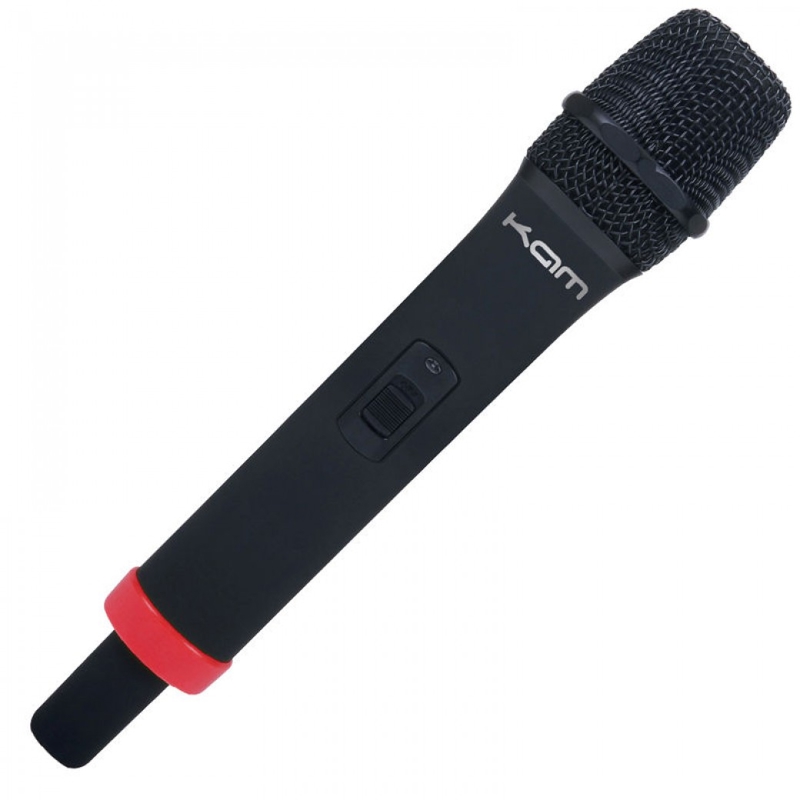

• 4 x colour coded microphone transmitters
• Working distance: 120 meters
• Balanced and unbalanced audio outputs
• USB charging for microphones (2 at a time)
• 2 x rack ears & USB charging cable
• Carrier frequency range: UHF 863-865MHz
• Oscillation mode: quartz controlled fixed frequency
• Carrier wave stabilisation: 10ppm
• Sensitivity: -105dB @sinad = 12dB
• Signal to noise ratio: more than 100dB
• Total harmonic distortion: less than 0.5% @1KHz
• Image rejection: 85dB typical
• Spurious rejection: 75dB typical
• Frequency response: 40Hz-18KHz
• Squelch control: dual squelch circuit
• AF output impedance: 2.2K Ohms
• Maximum output level (balanced): 0-400mV
• Maximum output level (unbalanced): 0-200mV
• Power: DC 12-18V external supply
• Balanced audio outputs: 4 x XLR sockets
• Unbalanced audio output: 1 x TRS 6.35mm socket
• USB charge output: 5V / 500mA
• Dimensions: 420 x 220 x 45mm (WxDxH)
• Weight: 3.8Kgs
