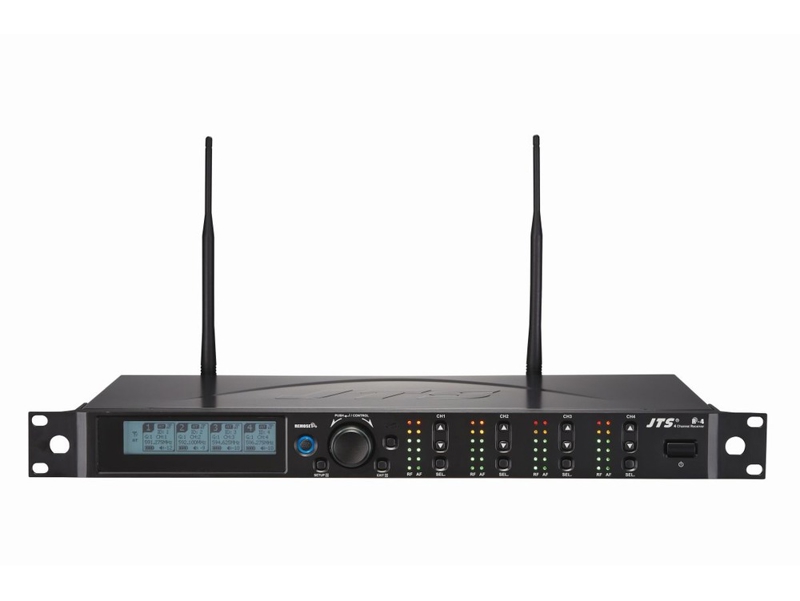

JTS R-4 Multi Channel Microphone Receiver

PRODUCT DESCRIPTION

The JTS R-4 is our newest generation of quad multi-channel wireless technology.
It features 4 channels within a 1U, 19" rack mount chassis.

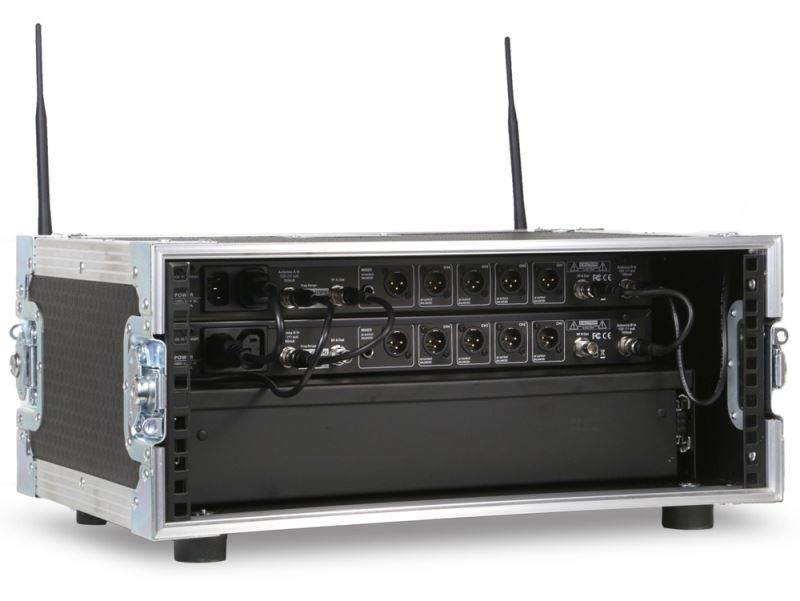

The system is designed with JTS newest generation of wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel receiver in a 1U, 19” rack mount chassis.  Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.

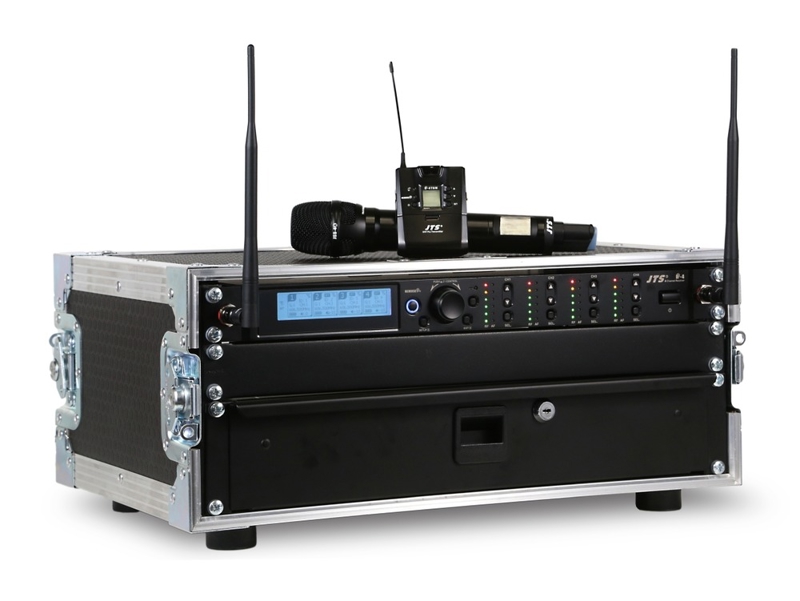

JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance

Net Dimension (WxHxD): 212.3mm x 38.3mm x 144mm

Frequency Preparation: PLL Synthesized Control

S/N Ratio: >105dB

Display Contents: Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad

Audio Output Level: -12dB

Squelch: Pilot Tone & Noise Mute

Operation Voltage: 12V 1A

Output Connector: 4 independent XLR outputs, and 1 Ôø?6.3mm and 1 XLR for mixed output

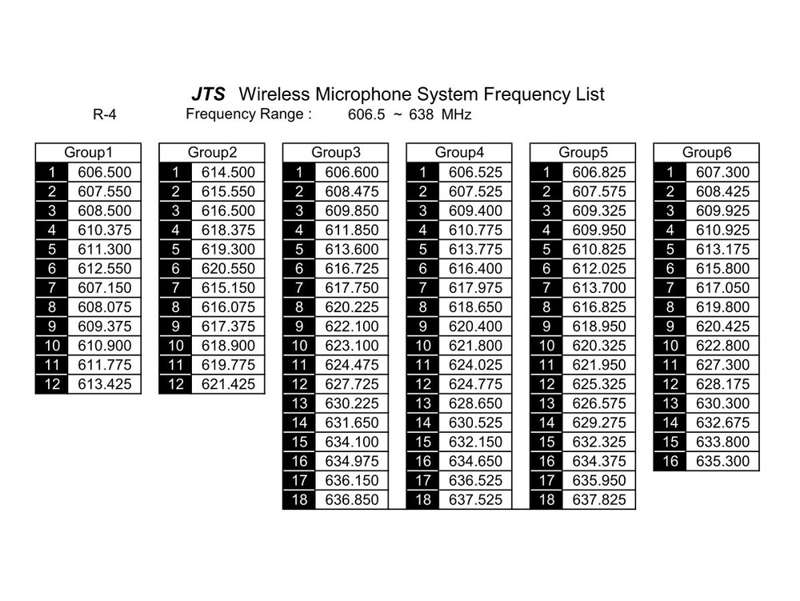

Carrier Frequency Range: Options of 606.5 - 638MHz or 823 - 865MHz

AF Output Impedance: 600Œ©
