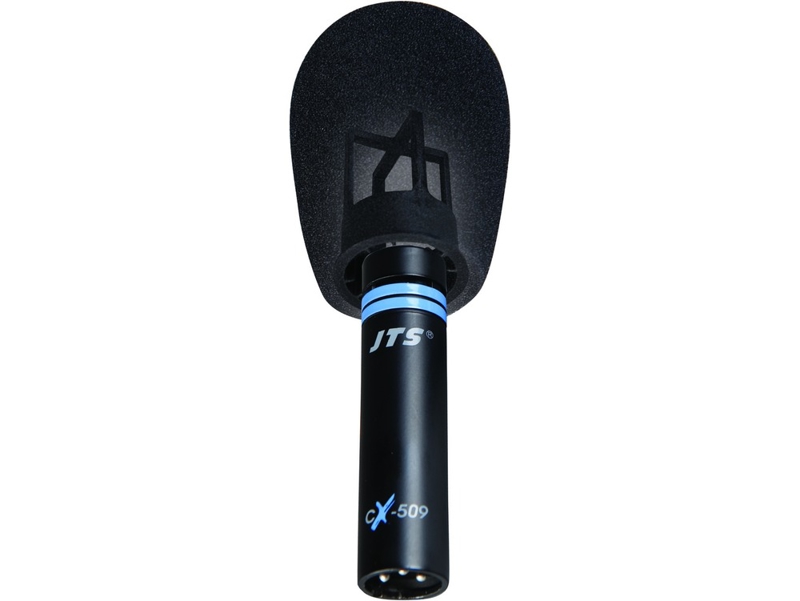

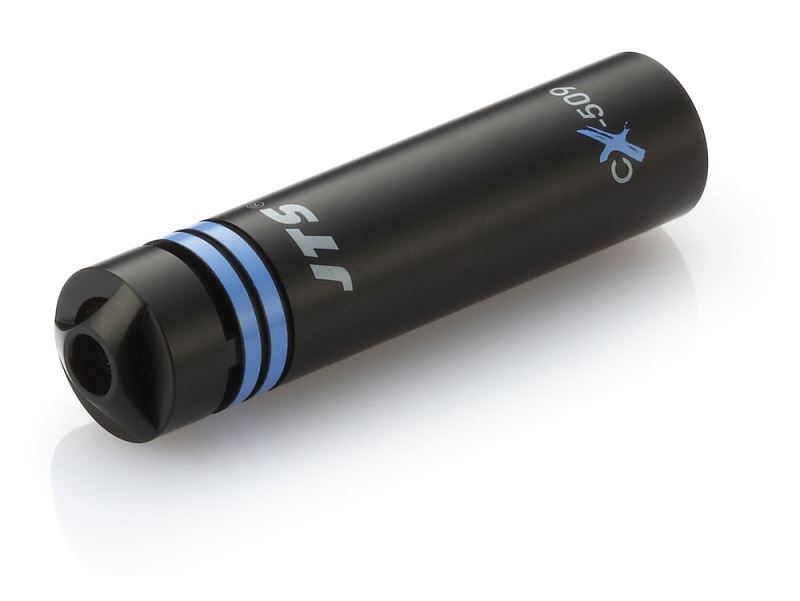

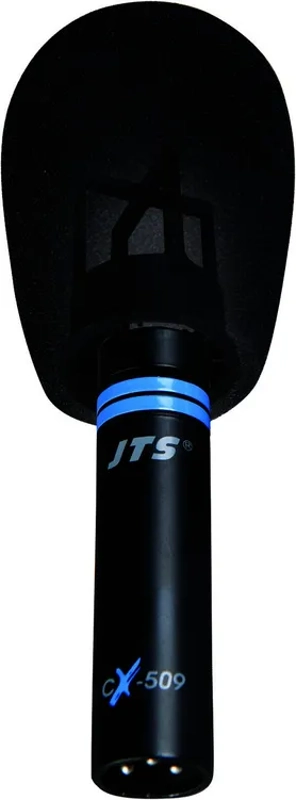

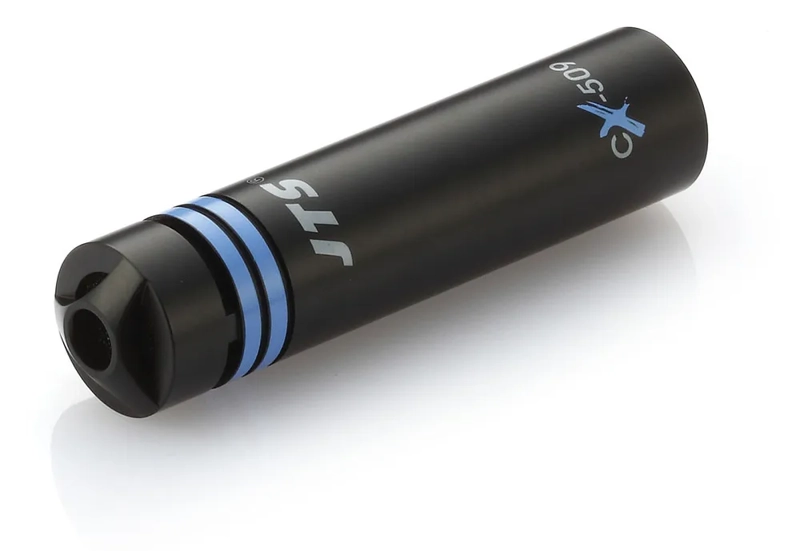

JTS CX-509 Instrument Microphone

The CX-509 is a low profile condenser instrument microphone.For sound pickup of hi-hats/cymbals as well as various percussion instruments and acoustic instruments, e.g. guitars/violins, flutes or choir voices.Unobtrusive positioning due to small dimensions Robust body with standard XLR input. Requires phantom power. Supplied with microphone holder.

The JTS CX-509 Condenser Microphone is a compact low profile microphone designed for versatile placement around the sound source. Its wide frequency response, low noise characteristics, low distortion have made the JTS CX-509 a popular choice in studio and performance applications. Excels as an Overhead Cymbal and Hi-Hat microphone as well as for Tom Toms, Percussion, and Acoustic Guitars.

Frequency response: 30Hz - 18kHz

Net Dimension (WxHxD): ÿ19mm (W)* 79mm (H)

Net Weight: 60g

S/N Ratio: 70dB

Output Connector: 3 Pin Male XLR

Power Supply: 9-52V DC Phantom Power

Microphone Type: Uni-directional Condenser

Current Consumption: ≤3mA

Impedance: 220Ω

Sensitivity (at 1kHz): -65dB*(0.56mV)*0dB

Max. SPL for 1% THD: 130dB
