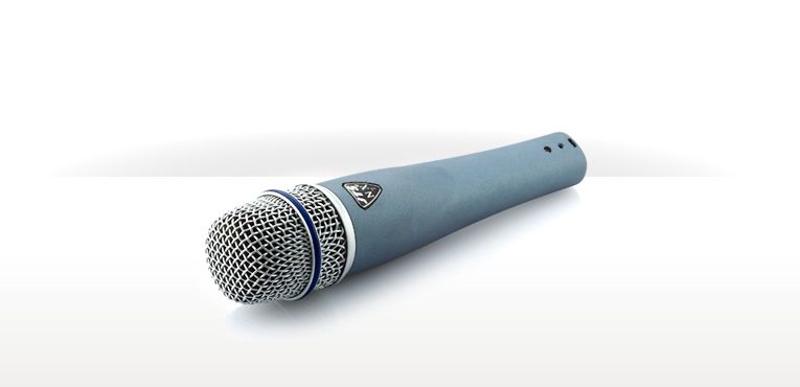

JTS NX-7 Dynamic Microphone

The NX-7/NX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make NX-7/NX-7S ideal for vocal,drums, guitar amplifiers and other instruments. The dynamic shock mount keeps noise to a remarkable low level. The top-flat grille allows mic. cartridge closer to a sound source to maximize low frequency proximity effect.

Specifications

Type	Moving Coil Dynamic
Frequency Response	50~16,500 Hz
Polar Pattern	Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz)	-72dB(0.25mV)0dB=1V/μbar
Impedance	600Ω
Phasing	Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector	Three-pin professional audio connector (male XLR type)
Case	Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight	235 grams (8.3 oz)
