JTS NX8S (Switched) Vocal Performance Microphone Mic

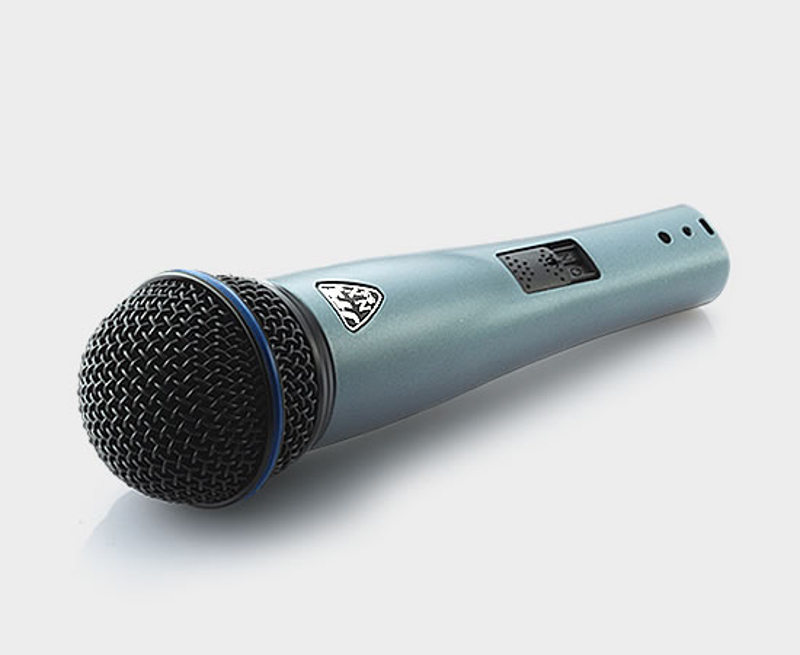

JTS NX-8S

Based on the success of X-series performance microphones NX-8/NX-8S reenhance overall performance. NX-8/NX-8S provide extended frequency response and dynamic range for cleaner and smoother sound. The shock mount keeps handling noise to extremely low level. Reinforced cartridge and hardened grille make NX-8/NX-8S one of the most rugged mics in the professional microphone industry.

SPECIFICATIONS

NX-8S

• Type                               Moving Coil Dynamic
• Frequency Response     50~16,500 Hz
• Polar Pattern                  Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
• Sensitivity(at 1,000Hz)   -72dB*(0.25mV)*0dB=1V/μbar
• Impedance                     600Ω
• Phasing                          Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Connector                      Three-pin professional audio connector (male XLR type)
• Case                               Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
• Net Weight                     245 grams (8.6 oz)
• NX-8S                            Equipped with Magnetic Reed Switch
