Product Description

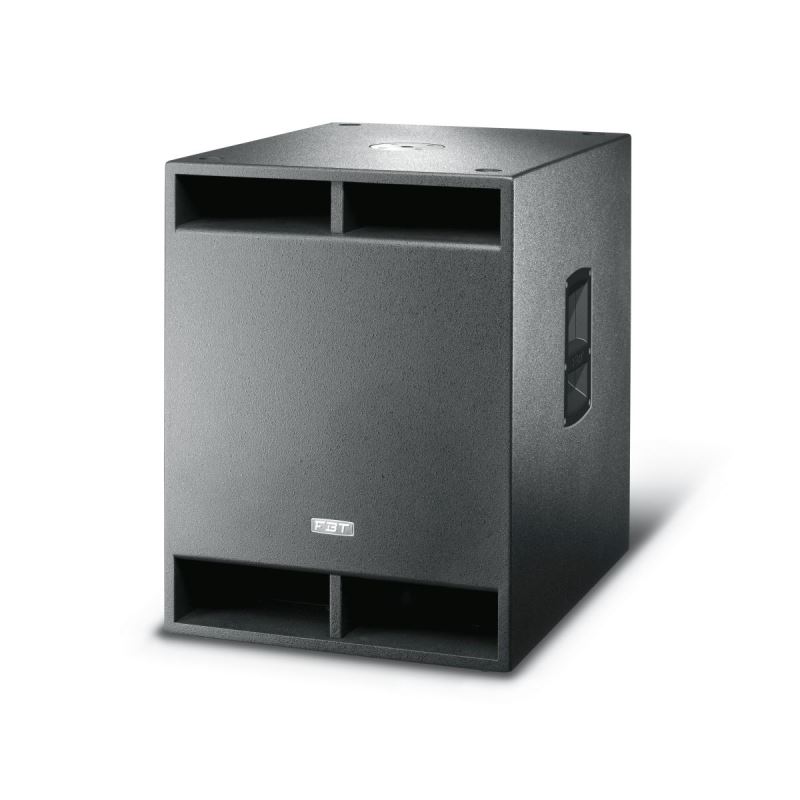

FBT X-lite X-Sub 18SA Subwoofer Bass bin Xlite

Processed Active Subwoofer

1200W – 136dB SPL

Overview

Designed as the perfect partner for the X-LITE and X-PRO series, FBT introduces the new X-SUB 18SA powered subwoofer. Loaded with a single 18” heavy duty woofer, the X-SUB 18SA is controlled by a 1200W Class D amplifier with DSP at 4 presets allowing perfect tailoring of the extended low frequency to the mid-high. The rugged plywood enclosure is built to withstand touring conditions, yet crafted with Italian style to suit the most elegant fixed installations. Finally, the M20 thread allows for pole mounting on a 3-way system design.

Features

Compact band-pass design subwoofer with high SPL and punch
460mm (18”) high excursion woofer with 75 mm (3”) voice coil
Frequency response from 38Hz to 120Hz
1200W Class D power amplifier with switch mode supply
Digital Signal processor with 6 presets, 2 equalization with 2 LPF crossover settings

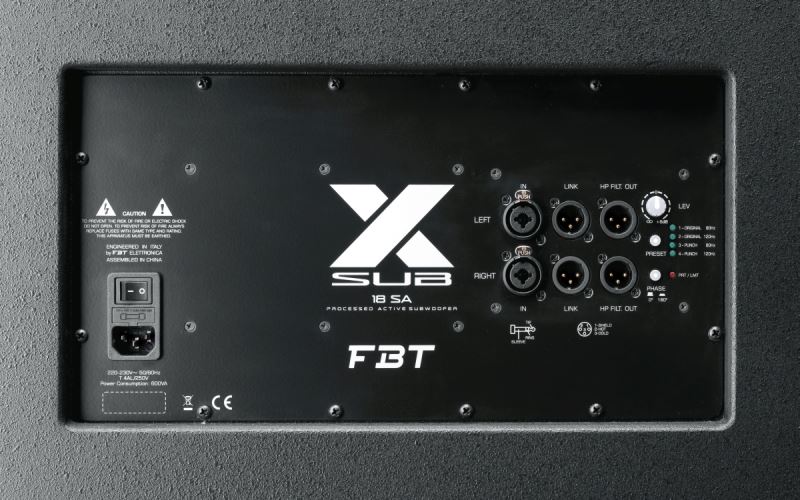

Control panel with stereo combo XLR/Jack in/outs, Stereo XLR HP-Filter outs, Volume, EQ presets, phase reversal switch 0°-180°, status LED indicators
18mm plywood cabinet with scratch & scuff resistant paint finish
M20 (20mm) top mount speaker stand socket, two FBT design aluminum handles, 100mm optional wheels
Provides additional low frequency reinforcement when used along with X-PRO or X-LITE speaker series

Specifications

Code:	38772
Configuration:	1 Way
Built-in amplifier peak LF/HF:	1200W
Frequency response:	38Hz to 120Hz
Low Frequency woofer:	18
Maximum SPL cont/peak:	136dB Half-space
Dispersion:	Omnidirectional
Input impedance:	22 Kohm
Input connector:	XLR/Jack Combo (Stereo)
Power cord:	5m / 16.4ft - IEC
Net Dimension (WxHxD):	510 x 692 x 650 mm / 20.07 x 27.24 x 25.59 in
Net Weight:	42kg / 92.59 lb
Transport Dimension (WxHxD):	700 x 840 x 800 mm / 27.55 x 33.07 x 31.49 in
Transport Weight:	46kg / 101.41lb
