FBT J5A

Processed 2-way active loudspeaker
 80W + 40W – 117 dB SPL (peak)

Applications

• Band P.A.
• Personal monitor
• Small theatres
• Auditoriums
• Piano bar
• DJ
• Stage monitor
• Conference rooms
• Fixed installations in live clubs
• Pubs
• Gyms

Overview

The FBT J5A series speakers feature lightweight, yet rugged gas injected moulded polypropylene cabinet construction.

Available in black or white finish the FBT J5A series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. The asymmetrical shape of the FBT J5A cabinet also allows use as a powered floor stage monitor.

The FBT J5A is of two way design incorporating an 5" low frequency woofer and 1" HF custom compression driver coupled to a 90°H x 90°V horn. The active internal crossover is at a fixed frequency of 3.5kHz. With a frequency range of 80Hz - 20kHz the FBT J5A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 117dB. A front face steel grille protects the speaker from external damage.

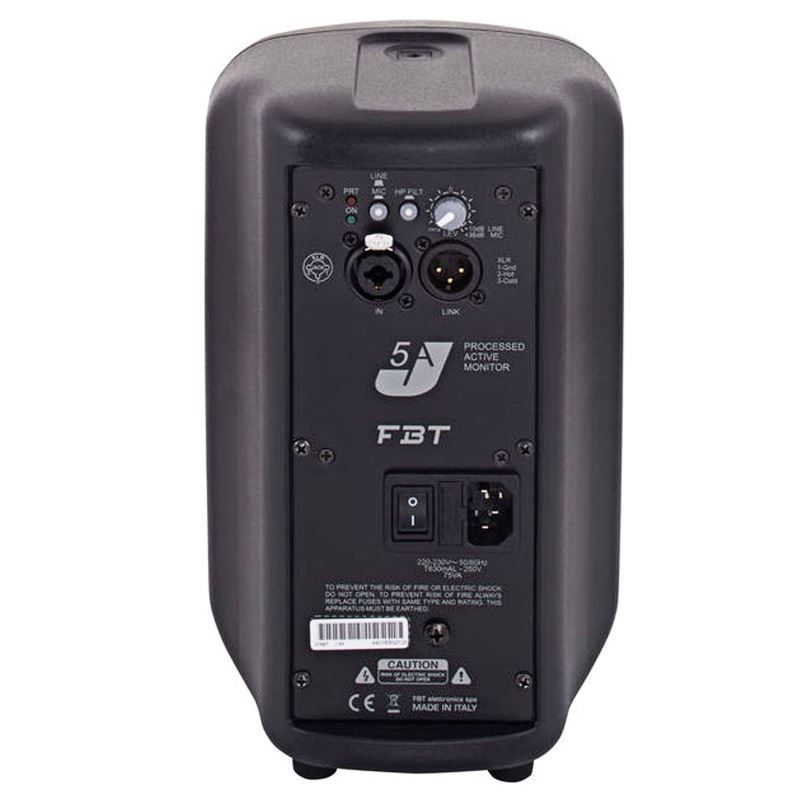

The bi-amplified FBT J5A active speaker feature a 80W RMS low frequency amp and a 40W RMS high frequency amp. The control panel features a level control, HP filter switch, mic/line selector, led power on, protection led indicator, a balanced Neutrik input combo-jack, balanced XLR link out.

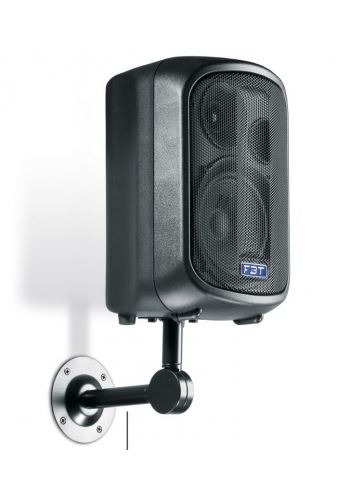

The two M6 fly points built into the cabinet along with the optional mounting brackets allow the FBT J5A speaker to be surface mounted on walls or ceilings. A standard 1,38" speaker stand socket allows the FBTJ5Ato be mounted on speaker stand.

Features

• 2-way processed active system
• Polypropylene enclosure
• 1 x 5" custom woofer
• 1 x 1" neodymium silk dome tweeter
• 60W/30W built-in amplifier cont. RMS LF/HF
• 80W/40W built-in amplifier max. RMS LF/HF
• 160W/80W built-in amplifier max. peak LF/HF
• 2 x M6 suspension points
• Low noise toroidal transformer power supply

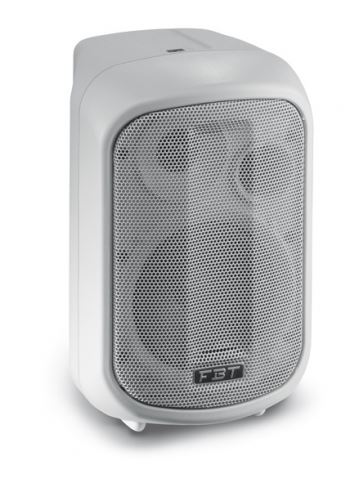

• Available in white colour
• Completely manufactured in Italy

Specifications

• Code:37687 / 37905 (White)
• Configuration:2 Way
• Built-in amplifier LF/HF:80/40w RMS
• Built-in amplifier peak LF/HF:160/80w
• Frequency response:80Hz - 20 kHz
• Low Frequency woofer:5" with 1" VC
• High Frequency driver:1" Dome Tweeter
• Maximum SPL cont/peak:113 / 117 dB
• Dispersion:90 x 90 (HxV)
• Input impedance:22 Kohm
• Crossover Frequency:3.5kHz
• AC Power requirements:75VA
• Input connector:XLR/Jack Combo socket with link out
• Power cord:5m IEC
• Net Dimension (WxHxD):170 x 275 x 180mm / 6.69 x 10.82 x 7.08in
• Net Weight:3.4kg / 7.49lb
• Transport Dimension (WxHxD):240 x 345 x 235mm / 9.44 x 13.58 x 9.25in
• Transport Weight:4.2kg / 9.25lb

*Wall brackets available separately, contact us for prices.

Will send direct from FBT UK to your door (we are a main dealer) or if you want to collect we usually hold stock in store, near Exeter. Contact us before making the trip if urgent!

We also can do packages with speaker stands and covers if required, contact us for best prices!
