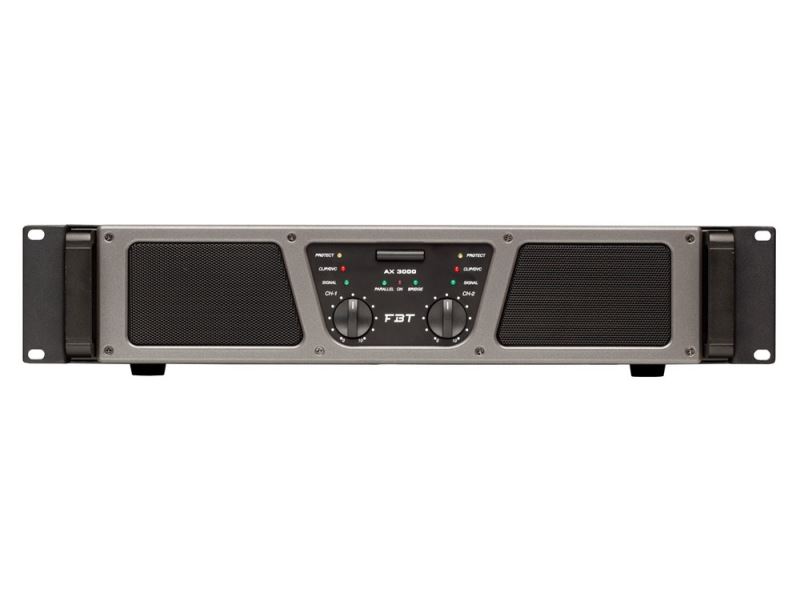

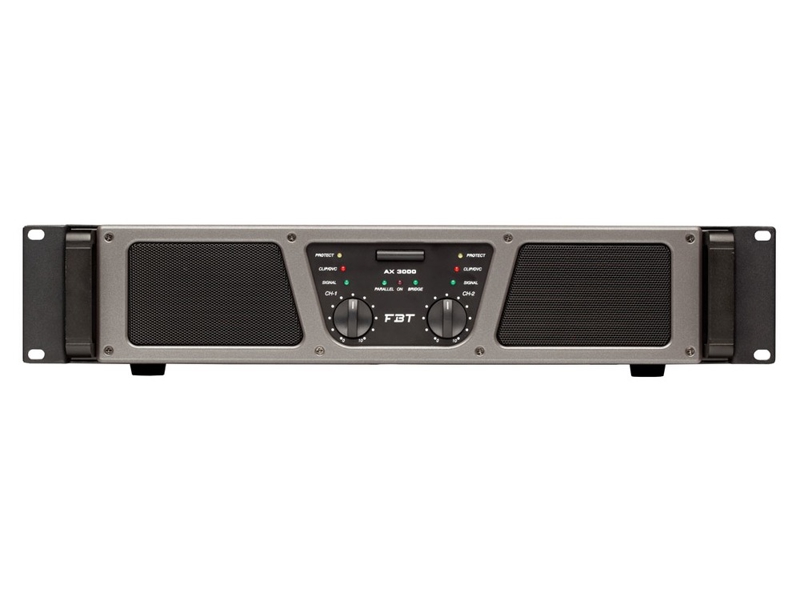

FBT AX 2000 2 Ch. Amp

PRODUCT DESCRIPTION

2 Ch. Power Amp - 2x1000Wrms (4ohm) - 2000Wrms (8ohm bridge)

Amplification for live sound reinforcement speaker systems in clubs, discos, piano bar, conference halls, houses of worship, sports arenas, schools, theatres, mobile D.J. use, recording studio monitors, foreground music reproduction, etc.

Tour tough built, sleek design, impressive specs, excellent cost per watt performance, efficient under any application. With these credentials, FBT proudly presents the new AX series of power amplifiers, the perfect power mates for sound reinforcement speaker systems. The AX series consists in four 2HU rack mount models, from 800 to 3000 watts, all designed with sophisticated power amp circuits for improved quality, stability and reliability, all equipped with Stereo-Parallel-Bridge operation mode, dB sensitivity switch (26-29-32dB), limiter, ground lift, XLR/Jack inputs (plus extra RCA input on AX 800), Speakon/Binding posts outputs.

KEY FEATURES

Both channel driven 8 ohm 1% THD Continous/impulsive: 630/650W

Both channel driven 4 ohm 1% THD Continous/impulsive: 840/1000W

Bridge 8ohm 1% THD: 1680/2000W

Input impedance: 20K balanced

Signal to noise ratio S/N: >100dB

Total harmonic dist. (1kHz-4ohm): <0.03%

Frequency response: 20Hz-40kHz -6dB

Damping Factor: >400

Class: H - 2 step

Maximum power consuption: 2400va

Power supply voltage: 120 or 230 vac 50/60 Hz

Protections: Short circuit / thermal

Connectors: In: XLR/Jack out: Speakon/Binding post

Net Dimension (WxHxD): 482 x 88 x 290mm
