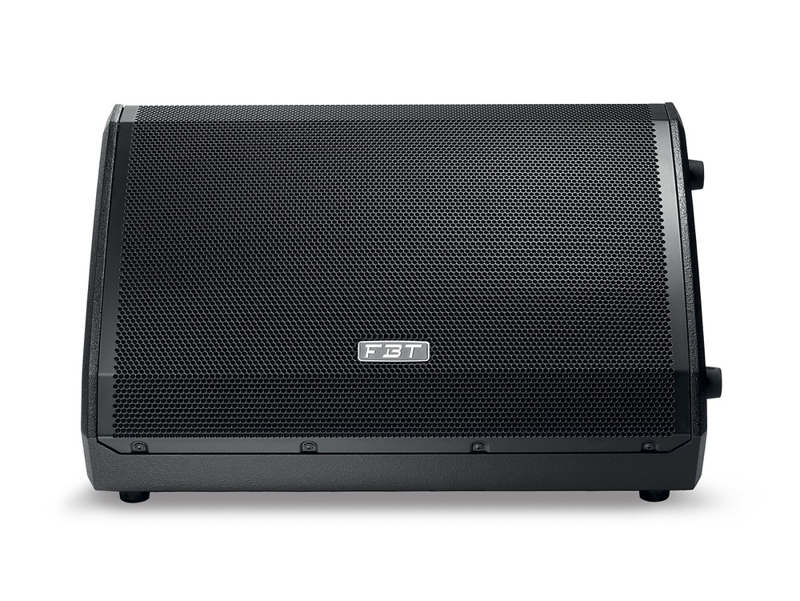

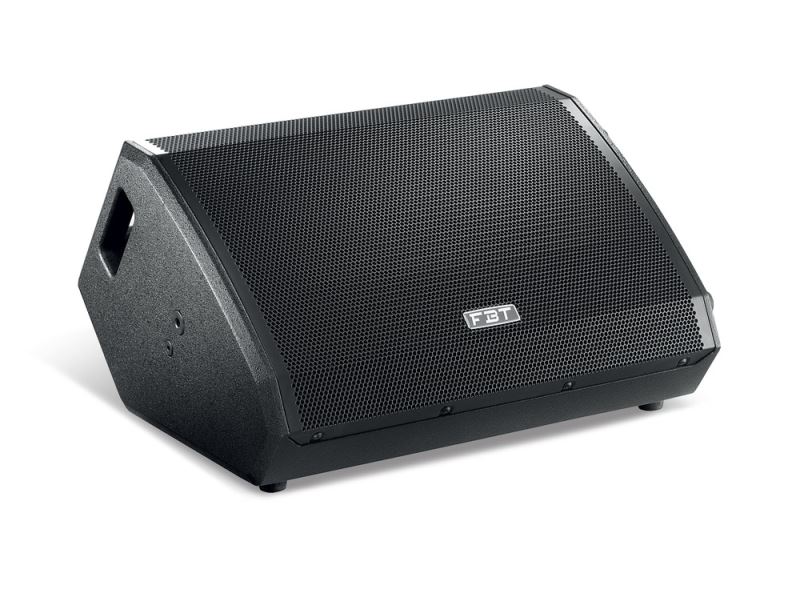

Ventis 112MA Active Stage Monitor

PRODUCT DESCRIPTION

The 112MA and 115MA bring floor monitoring to VENTIS. Rated at 700W + 200W, the bi-amplified 112MA delivers 132dB SPL in a bass reflex design, using a 320mm (12”) coaxial custom woofer with a 64mm (2.5’’) voice coil, 25mm (1”) B&C throat and 44mm (1.7”) voice coil.

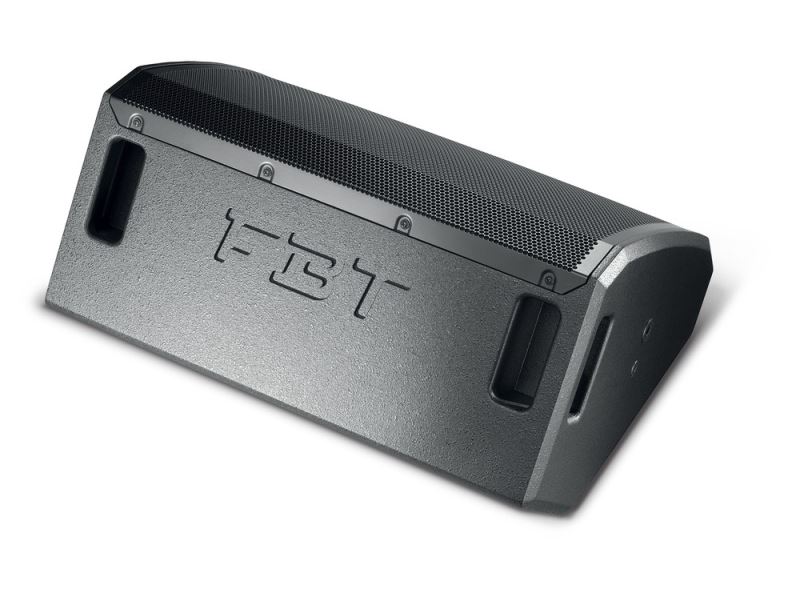

The enclosure has a frequency response of 55Hz to 20kHz with 90° conical dispersion, while onboard DSP offers six factory presents for a broad range of scenarios. For flexibility in use, the monitor offers a 35mm (1.38’’) stand socket, two integrated carrying handles and an optional wall mount bracket.

Alternatively, the passive 112M is rated at 400W into 8ohm delivering 129dB SPL, with a built-in passive crossover and speakon NL-4 In and Link Out connectors.

KEY FEATURES

Bi-amped

Speakers equipped: 12" Woofer and 1" tweeter

Performance: 700 W Class D (LF) and 200 W Class H (HF)

DSP with 6 presets and 2 freely configureable memory slots

Housing material: 15 mm birch plywood

Coverage pattern (nominal): 90° conical

Frequency range: 55 Hz - 20.000 Hz (-6 dB)

Max SPL: 133 dB

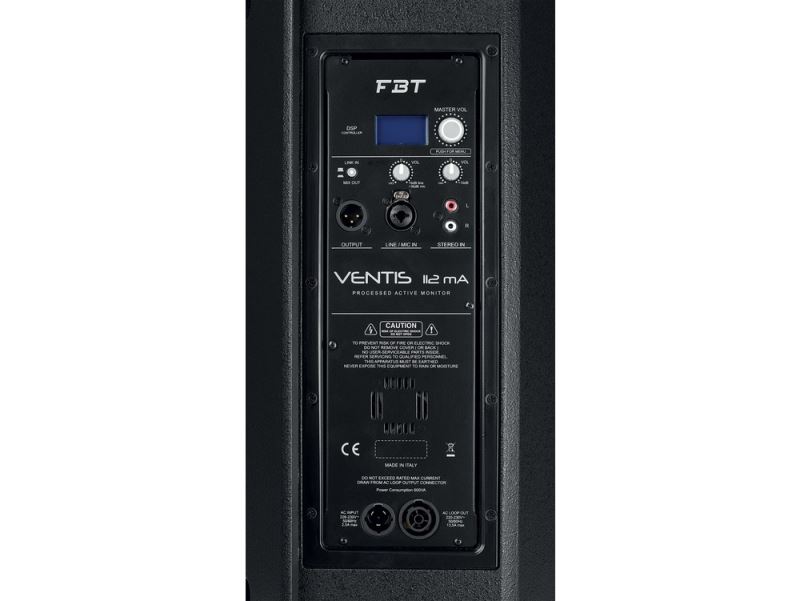

Inputs: XLR / Jack combined input and RCA ("Cinch" stereo)

Left output: XLR male

Dimensions: (W x H x D): 563 x 311 x 452 mm

Weight: 17.5 kg

Colour: Black
