PRODUCT DESCRIPTION
PROCESSED ACTIVE SPEAKER 700W + 200W RMS – 131DB SPL
For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

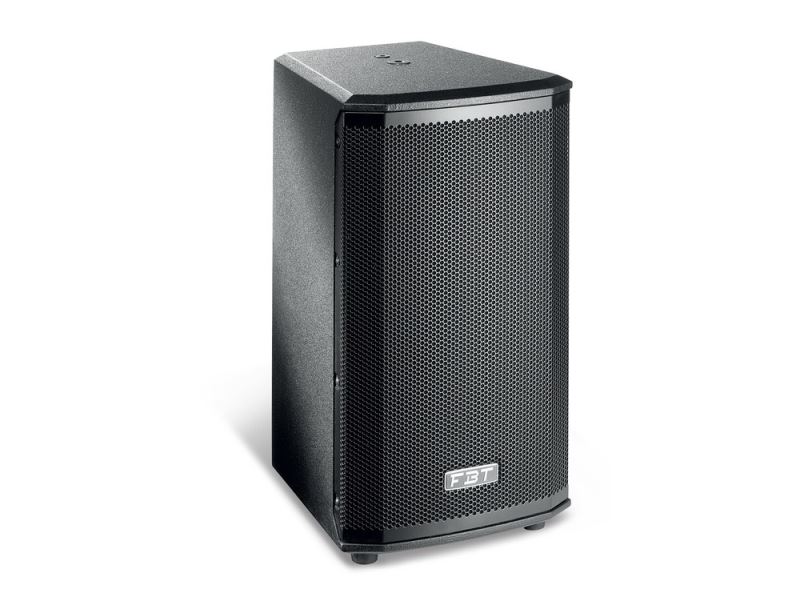

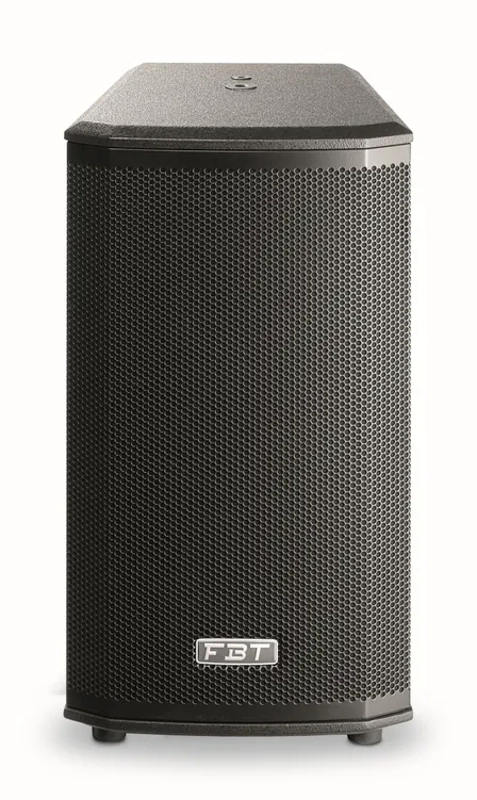

The 108A includes a 200mm (8") woofer and 50mm (2") voice coil, driven by 700W + 200W bi-amplification to deliver an impressive 131dB SPL from a supremely portable cabinet.
KEY FEATURES
Bi-amped
Speaker configuration: 8" Woofer and 1" tweeter
Power: 700 W Class D (LF) and 200 W Class H (HF)
DSP with 6 presets and 2 freely configurable memory locations
Housing material: 15 mm Birch plywood
Beam angle (nominal): 80° x 50° (H x V, rotatable)
Frequency range: 65 - 20,000 kHz (-6 dB)
Maximum SPL: 131 dB
Inputs: XLR / jack combo socket and RCA ("Cinch" stereo)
Link output: XLR male
Dimensions (W x H x D): 274 x 500 x 300 mm
Weight: 13.3 kg
Colour: Black
