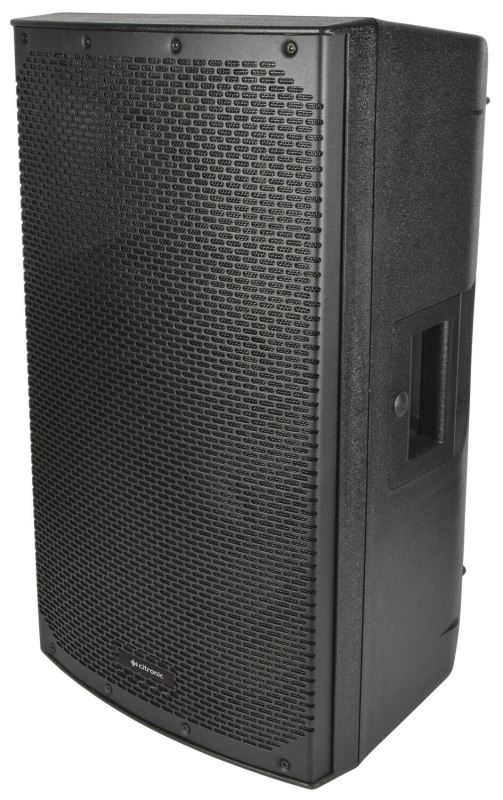

Citronic CAB Series Active Cabinets With BT Link
Active PA speakers with BT wireless connection and stereo link capability, housed in a compact and lightweight moulded PP enclosure. Custom designed low and high frequency drivers are powered by a digital amplifier circuit for powerful and energy-efficient performance. A switchable Mic/Line input and separate Line input are provided along with a Bluetooth receiver for playback from a smart phone or tablet. The BT section also has a link function which allows wireless connection to another CAB series speaker to form a stereo pair. Maximum sound output with minimal size, weight and setup time.
Bluetooth receiver with stereo link capability
Digital amplifier for lightweight & efficient performance
Integral top and side carry handles
2 inputs with separate volume control
35mm pole mount
Specification : Common
Power supply 220-240Vac, 50Hz (IEC)
Housing material Injection moulded polypropylene
Amplifier : construction Class D + Class AB
HF driver 35mmØ (1.35") Ti compression driver
Dispersion 90° x 60°
Inputs Mic/Line XLR or jack, Line XLR or RCA, Bluetooth
Indicators Power on, Limit & Bluetooth link LEDs
Line output XLR
Frequency response53Hz - 19kHz
Output power : rms300W
Output power peak1200W
Max. SPL134dB
Main driver300mmØ (12") woofer
Voice coil50mmØ (2")
Crossover frequency2.8kHz
Dimensions603 x 355 x 350mm
Weight14.2kg
