Q-Audio QWM 1960 HBP Twin Microphone System One Handheld One Beltpack Custom (KAM) Kit Ch70

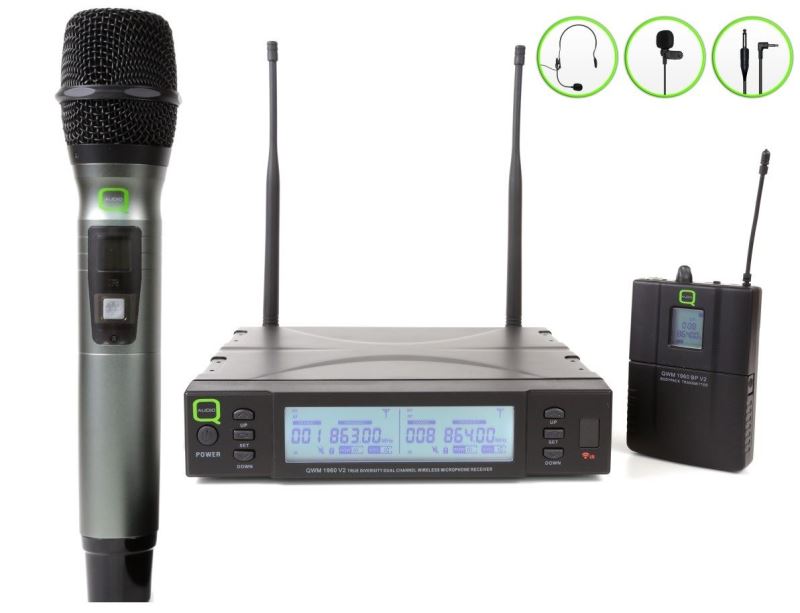

Here we have a package we have put together which includes the Q-Audio 1960 dual receiver with one handheld microphone and one beltpack with lavalier/headset mic.
They are a match but different manufacturers, but all work together. The belpack comes with a lavalier mic, guitar lead (for wireless guitar transmission, for those solo's where you go on a wander) and a headset microphone (ideal for aerobics, dance classes etc). Only one of the belpack mics can be used at once, and of coarse cnan be used with the handheld at the same time.
Description
Features:
UHF Dual Channel True Diversity Handheld Wireless Microphone System
Multi-channel UHF PLL receiver and 2 mic transmitters
Large backlit display with multiple status indicators
ACT infrared pairing of mics to receiver
2 x balanced XLR outputs
1 x unbalanced 6.35mm jack mixed output
Includes receiver, 1 x HH mic, 1 x Beltpack with lavalier, headband, and guitar lead, batteries, PSU and audio cable
High efficiency battery consumption design
2 x adjustable/removable high gain antenna
Two systems can be connected for 19 inch rackmount
Working distance: 50 meters
Continuous usage: 5 hours
Specifications
Frequency range: UHF 863-865 MHz (Channel 70)
Frequency stabilisation: <±30ppm
Dynamic range: >90dB
Total harmonic distortion：<0.5%
Frequency response: 40Hz-15Hz±3dB
Audio output level: 400mV unbalanced/balanced
Signal to noise ratio: >90dB
Image and spurious rejection: >80dB
Border upon channel rejection: >80dB
Receiving sensitivity: 5dBuV
De-emphasis: 75uS
Power supply DC 17V/300mA
Power consumption: 5w
Receiver dimensions: 210 x 185 x 45mm (WxDxH)
Transmitter power: 10mW (max)
Modulation type: FM
Max deviation: ±25KHz
Spurious emission: >40dB
Mic dimensions: 55 x 55 x 260mm (WxDxH)
Mic battery voltage: 3V (2 x 1.5V AA batteries)
