KAM KWM1960 BP V2 Twin Dual Beltpack Radio Microphone DJ 863-865MHz CH70
Discontinued Text

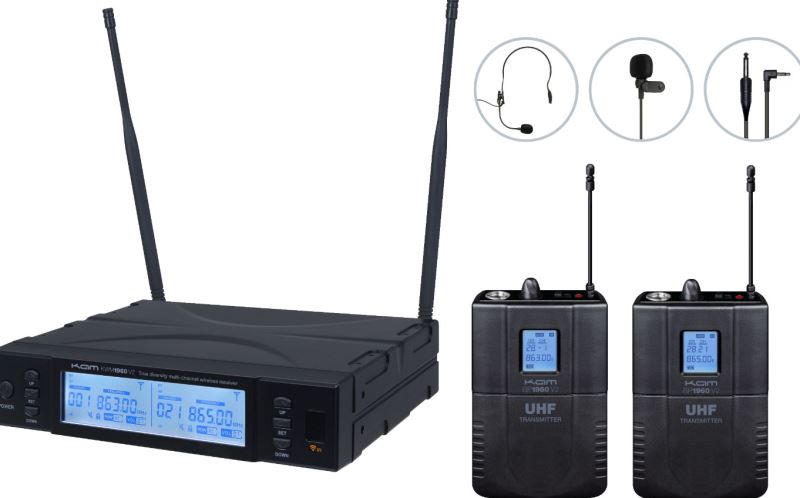

KAM KWM 1960 BP V2
FEATURES
Professional grade UHF wireless bodypack and mics system
Multi-channel UHF PLL receiver and 2 bodypack transmitters
Large backlit display with multiple status indicators
ACT infrared pairing of bodypacks to receiver
2 x balanced XLR outputs
1 x unbalanced 6.35mm jack mixed output
Includes receiver, 2 x bodypacks, 2 x headset mics,
2 x lavalier/lapel mics 2 x guitar/instrument leads,
plus batteries, PSU and audio cable
High efficiency battery consumption design
2 x adjustable/removable high gain antenna
Two systems can be connected for 19 inch rackmount
Working distance: 50 meters
Continuous usage: 5 hours
Ideal for:
Aerobics & dance instructors
Vocalists & singers
Public speakers
Musicals & theatre
Street performers
Schools & colleges
DJs & musicians
Auctioneers
Video & film makers
Multi-channel UHF PLL receiver and 2 bodypack transmitters
Large backlit display with multiple status indicators
ACT infrared pairing of bodypacks to receiver
2 x balanced XLR outputs
1 x unbalanced 6.35mm jack mixed output
Includes receiver, 2 x bodypacks, 2 x headset mics,
2 x lavalier/lapel mics 2 x guitar/instrument leads,
plus batteries, PSU and audio cable
High efficiency battery consumption design
2 x adjustable/removable high gain antenna
Two systems can be connected for 19 inch rackmount
Working distance: 50 meters
Continuous usage: 5 hours
Ideal for:
Aerobics & dance instructors
Vocalists & singers
Public speakers
Musicals & theatre
Street performers
Schools & colleges
DJs & musicians
Auctioneers
Video & film makers
SPECIFICATIONS
16 channel frequency range:
UHF 863.0 to 865.0 MHz
Frequency stabilisation: <±30ppm
Dynamic range: >90dB
Total harmonic distortion: <0.5%
Frequency response: 40Hz-15Hz±3dB
Audio output level: 400mV unbalanced/balanced
Signal to noise ratio: >90dB
Image and spurious rejection: >80dB
Border upon channel rejection: >80dB
Receiving sensitivity: 5dBuV
De-emphasis: 75uS
Power supply DC 17V/300mA
Power consumption: 5w
Receiver dimensions: 210 x 185 x 45mm (WxDxH)
Transmitter power: 10mW (max)
Modulation type: FM
Max deviation: ±25KHz
Spurious emission: >40dB
Bodypack dimensions: 65 x 35 x 160mm (WxDxH)
Bodypack battery voltage: 3V (2 x 1.5V AA batteries)
Product code: 4740-BP
EAN barcode: 5060165399307
UHF 863.0 to 865.0 MHz
Frequency stabilisation: <±30ppm
Dynamic range: >90dB
Total harmonic distortion: <0.5%
Frequency response: 40Hz-15Hz±3dB
Audio output level: 400mV unbalanced/balanced
Signal to noise ratio: >90dB
Image and spurious rejection: >80dB
Border upon channel rejection: >80dB
Receiving sensitivity: 5dBuV
De-emphasis: 75uS
Power supply DC 17V/300mA
Power consumption: 5w
Receiver dimensions: 210 x 185 x 45mm (WxDxH)
Transmitter power: 10mW (max)
Modulation type: FM
Max deviation: ±25KHz
Spurious emission: >40dB
Bodypack dimensions: 65 x 35 x 160mm (WxDxH)
Bodypack battery voltage: 3V (2 x 1.5V AA batteries)
Product code: 4740-BP
EAN barcode: 5060165399307
KAM website link for manual and video: http://www.kam.co.uk/index.php?action=product&product_id=600
