JTS IN-164R IN-264TB UHF Beltpack Lapelle Tie Wireless Radio Microphone system

JTS IN-164R/A UHF Handheld Wireless Radio Microphone system IN-164R & IN-264TH

Channel 38 version

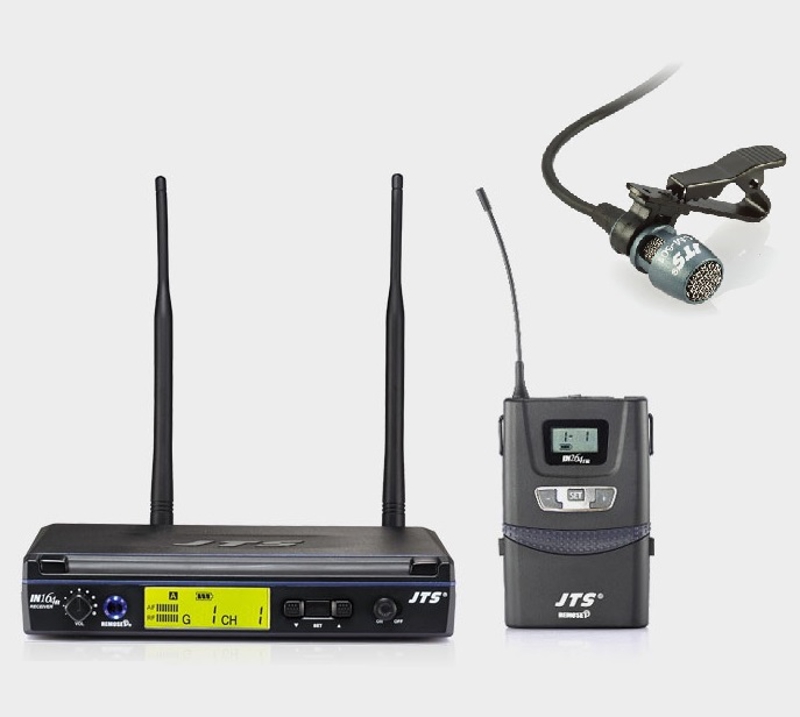

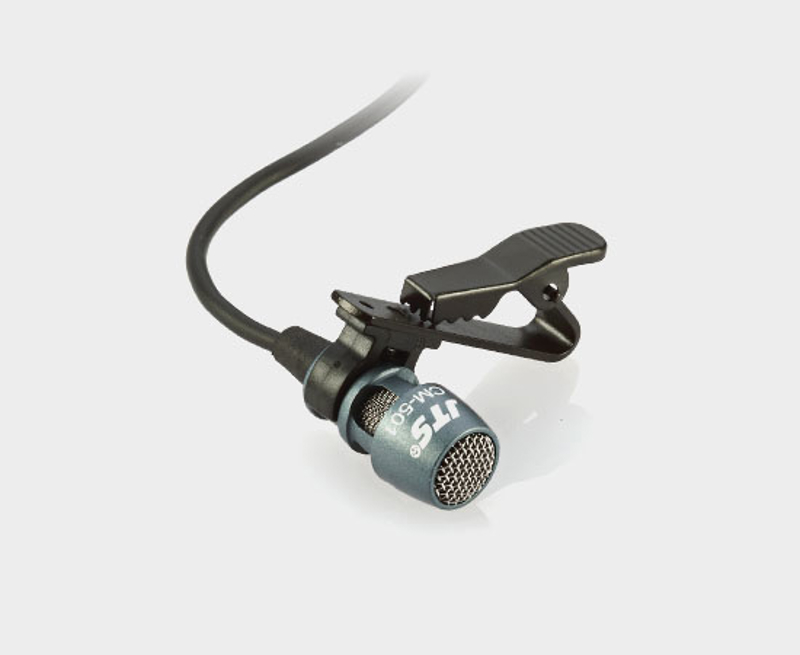

Here we have a UHF radio microphone system from JTS with a IN-264TB lapel microphone transmitter and IN-164R receiver ready to go. Features long operating range and  the World’s First Remote Control RF setting function that allows automatic remote control frequency settings of the Transmitter from the Receiver.

>> IN164R

‧ The JTS IN SERIES UHF Diversity Wireless System features the World’s First Remote Control RF setting function that allows automatic remote control frequency settings of the Transmitter from the Receiver.

‧(patent pending): uses a RF signal to send frequency change settings from the IN SERIES receiver to the transmitter in a fraction of a second.

‧ 200~480 meter operation distance.

‧ LCD Displays: RF Level, Audio Level, Low Battery Indicator, Antenna Status, Channel Selection.

‧ IN164R is single channel version of IN264R.

‧ IN164R with band width of 36 MHz.

‧ Preset 6 groups, maximum 23 channels in one group.

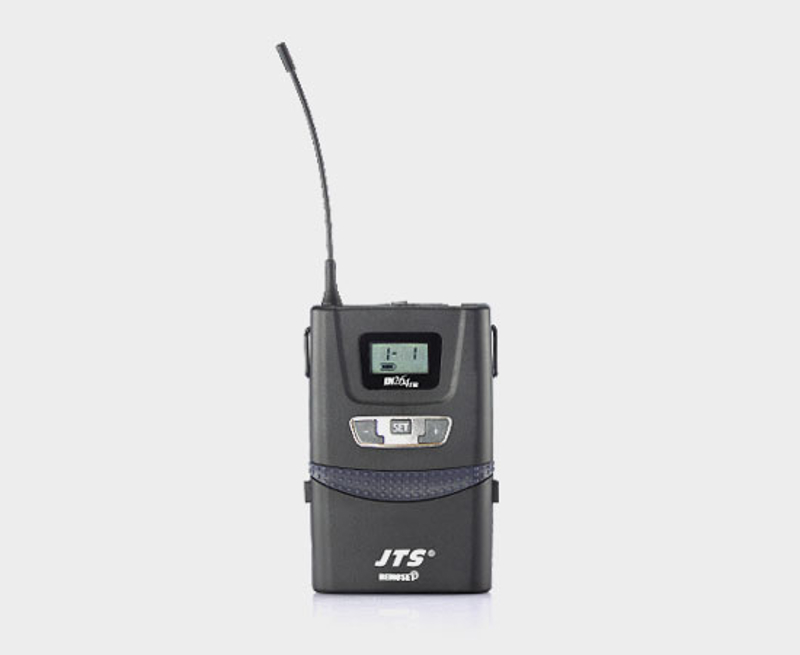

>> IN264TB

‧Frequency PreparationPLL Synthesized Control

‧Carrier Frequency Range

502~960 MHz

‧Stability±10KHz

‧Frequency Deviation±48KHz

‧LCD DisplayChannel, Battery Fuel Gauge,

‧ControlsID Number
Power On/Off, AF Level,
Frequency Up/Down, PAD, Gain Control, ID Pairing
Lock-on Mode

‧ Output connector4P mini XLR

‧ Spurious Emissions<-50 dBC

‧Audio Frequency Response40~18,000 Hz

‧BatteryUM3, AA 1.5V*2

 Specifications

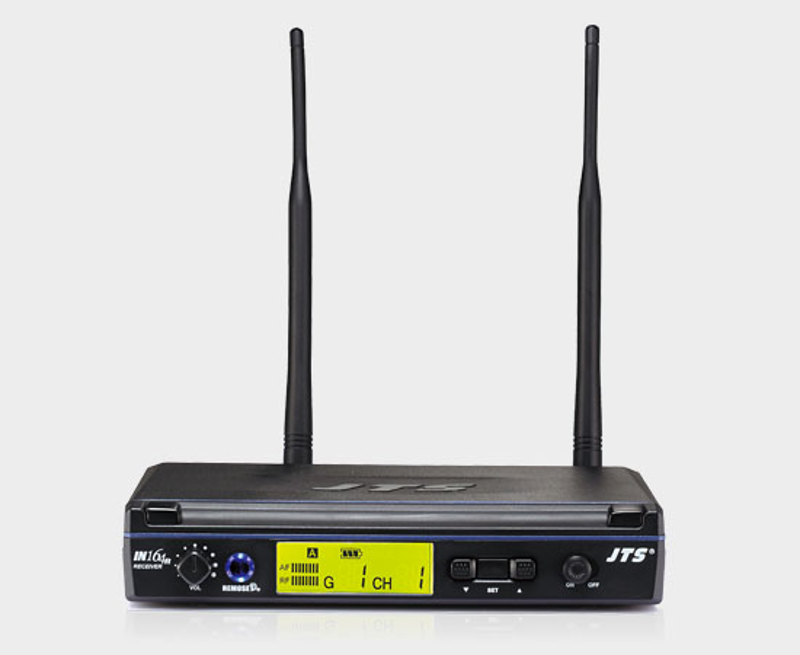

>> IN164R

Frequency PreparationPLL Synthesized Control

RemosetRadio Frequency : 2.4GHz
Effective distance: 10m

Carrier Frequency Range36MHz within 502~960 MHz

S/N Ratio>105dB

T.H.D<0.6%@1KHz

DisplayLCD

Display ContentsChannel, Antenna A/B, Mute Display, RF/AF Level Meter, Low battery, ID Number

ControlsPower On/Off, Frequency Up/Down, Lock-on,
ID Pairing, Remoset

Audio Output Level-12dB

AF Output Impedance600Ω

SquelchPilot Tone & Noise Mute

Operation Voltage12-18 VDC, 500mA

Output Connector1 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack

Dimension(m/m)210mm(W) * 40mm(H) * 165.5mm(D)
