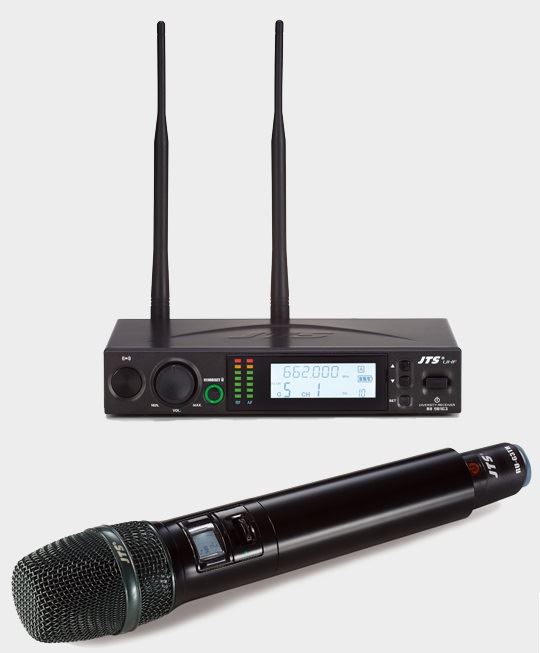

JTS RU-901G3 Hanheld Wireless Radio Microphone System

JTS RU-901G3 System

RU-901G3 is the 3rd generation true diversity system. It inherits the reliability in electronic circuit design and mechanical design of the legendary US-901. To cope with the development of the technology it features function. It synchronizes a transmitter with data of frequency, gain control, ID and so on by pushing a button. Scan function is also provided.
* RU-901G3 is for medium and large venue

SPECIFICATIONS

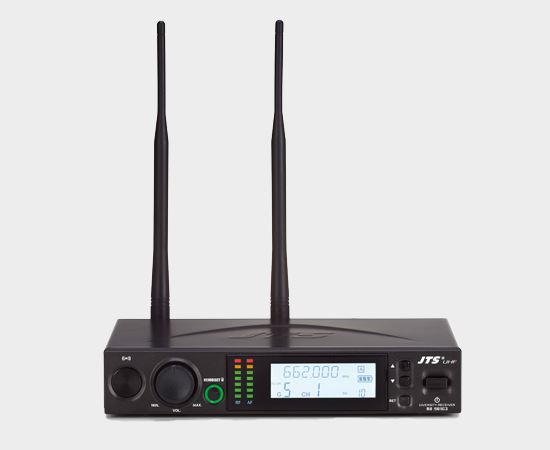

RU-901G3

• Frequency Preparation         PLL Synthesized Control
• Carrier Frequency Range     UHF 470~960 MHz
• Frequency Setting                 Remoset U Ultrasonic
• Receiving Mode                    True Diversity
• Bandwidth                              36MHz
• S/N Ratio                               > 105dB
• T.H.D                                     <0.6% @ 1KHz
• Sensitivity                              -95dBm, S/N>80dB
• CMRR                                   >80 dB
• Audio Frequency Response  50Hz~18KHz±2dB
• Antenna                                 BNC (F)
• Antenna Booster Power         DC12~15V/100mA
• Display                                   LCD
• Display Contents                    Group, Channel, Frequency, Battery Status, Antenna A/B, AF Meter                     (LEDBAR),  RF Meter (LED BAR)
• Controls                                  Power ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF)
• Audio Output Level                Ref:±22.5KHz Dev@1KHz Toneψ6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line)、-24dBV(MIC)
• AF Output Impedance           600Ω
• Squelch                                 Pilot Tone & Noise Mute

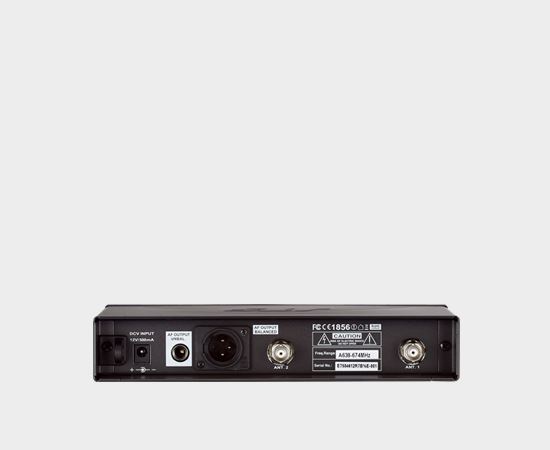

• Output Connector                 Balanced XLR Socket x1 / Unbalanced φ6.3mm PHONE JACK x1
• Power Supply                       DC12~15V/500mA
• Dimension (m / m)                 212.3mm(W)*38.3mm(H)* 144mm(D)
• Notes                                    Actual product specifications may vary depending on region.

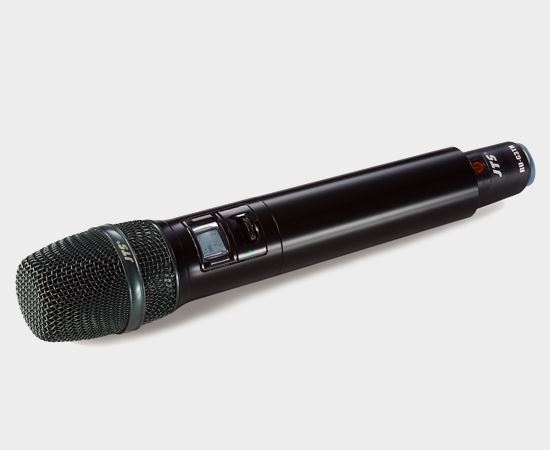

RU-G3TH

• Frequency Preparation        PLL Synthesized Control
• Carrier Frequency Range    UHF 470~960 MHz
• Frequency Setting               Remoset U Ultrasonic
• RF Outputs                          Low/High
• Stability                                <±10KHz@ Fc
• Frequency Deviation           ±48KHz
• Spurious Emissions             <-50dBc
• Display                                LCD+LED
• Controls                              Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode
• Battery                                UM3, AA x2
• Slot-in Charging                  Yes
• Dimensions                         50(W) x 253(H) x 35.5(D)
• Notes                                  Actual product specifications may vary depending on model and region.
