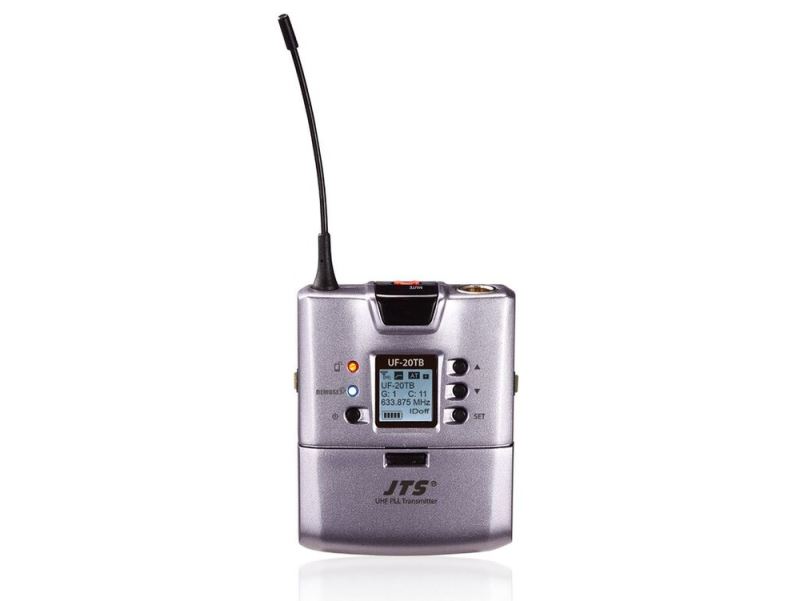

JTS UF-20TB beltpack transmitter

Powered by 2 x AA batteries the UF-20TB is a compact, lightweight beltpack featuring a 4pin mini-xlr input to accept a range of inputs such as JTS' headsets or lavalier microphones such as the popular CM-501.

The chassis is an aluminium alloy design and due to it's solid construction ensures there is no handling noise.
The features of the beltpack can also be controlled via REMOSET.

Carrier Frequency: UHF 606-681MHz

Controls: Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

RF Outputs: High/Low Option

Frequency Deviation: ±48KHz (Peak)

Battery: 2x AA

Stability: < ±10KHz

LCD Display: Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust

Bandwidth: 75Mhz Super wideband

Freq. Response: 50Hz - 18kHz

Frequency Preperation: PLL Synthesized Control
