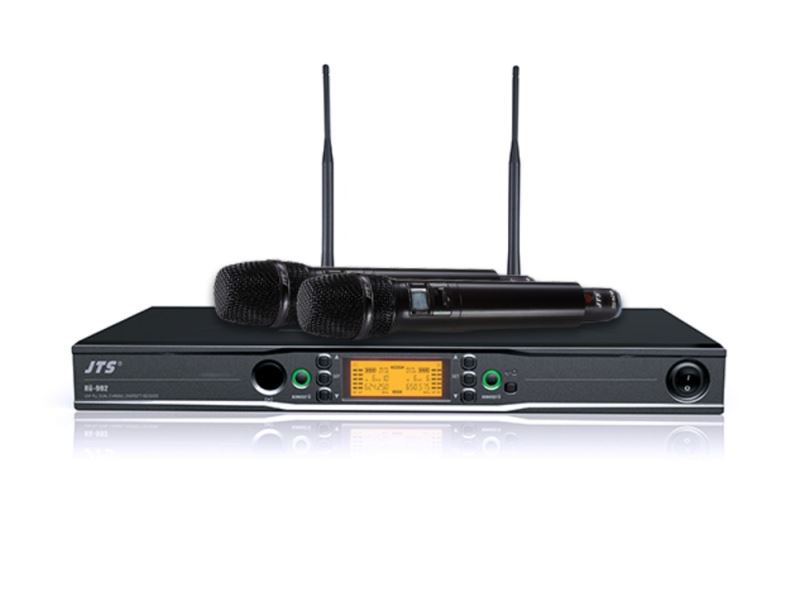

JTS RU-8012DB RU-G3TH Dual Handheld Microphone

PRODUCT DESCRIPTION

UHF PLL Dual Channel Diversity Handheld Wireless Microphone System with REMOSET and BNC antenna
RU-8012DB/RU-G3TH is a Dual reciever and supplied with two High Quality Hand Held  transmitter Microphones

The system is made up of the Dual RU-8012DB reciever Antenna Diversity UHF PLL Wide-band receiver and TWO RU-G3TH Hand-Held transmitter Microphones.

KEY FEATURES

RU-8012DB Receiver Features:

*JTS “Antenna diversity” Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas, and switches to whichever antenna is picking up the stronger signal.

*6 groups, each with up to 22 compatible preset channels

*1,441 selectable individual frequencies

*REMOSET ULTRASONIC technology for receiver/transmitter synchronisation

*Auto-Scan function

*Pilot tone squelch and noise mute

*Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level

*2 x XLR output (balanced.) and 2 x 6.3 mm TS Jack output (unbalanced.)

*Removable BNC Antennas

*Half Rack size with optional rack kits available.

*Optional rechargable Station with rechargable batteries is available (G3CH-2)

Available in CH 38 (606.5-642MHz)  OR  CH 70 (863-865MHz) versions *Please Note only 3 units on CH70 can be used simultaneously*

RU-G3TH Handheld Transmitter Features:

*Phase-locked Loop (PLL) synthesized tuner.

*Powered by 2 x AA batteries.

*Back lit LCD display with channel and battery life indicator, ID number.

*Extended dynamic range and smooth frequency response.

*Noise mute and tone-key squelch.

*Seperate Mute switch and Power button.

*Optional Charger available (G3CH-2)

Available in CH 38(606.5-642MHz)  OR  CH 70 (863-865MHz) versions * Please Note  only 3 units on CH70 can be used simultaneously*
