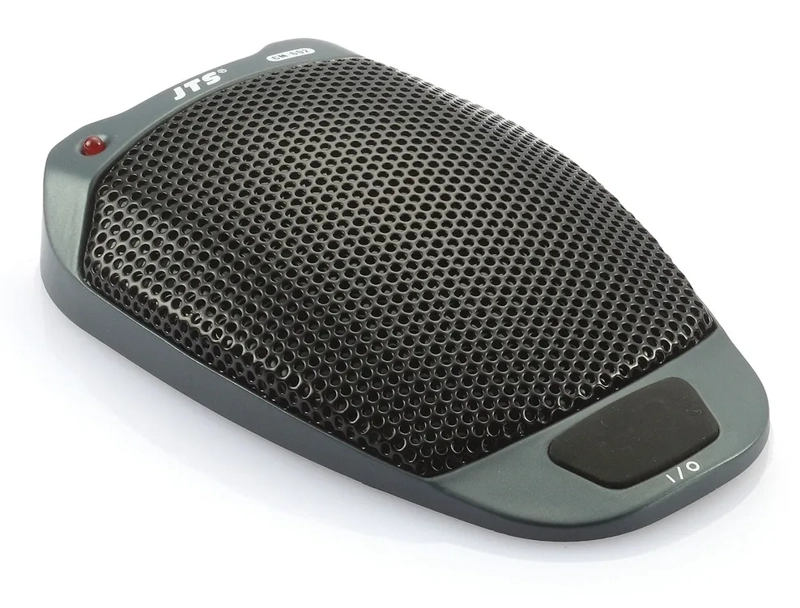

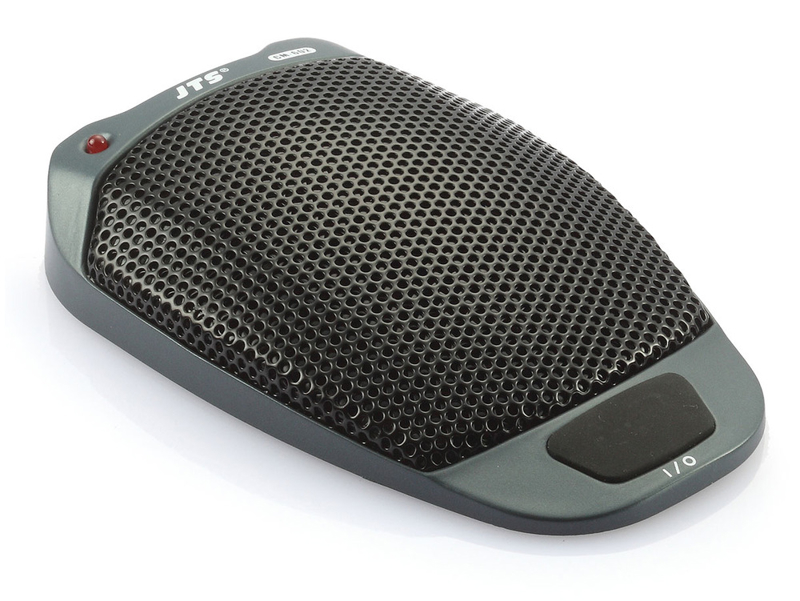

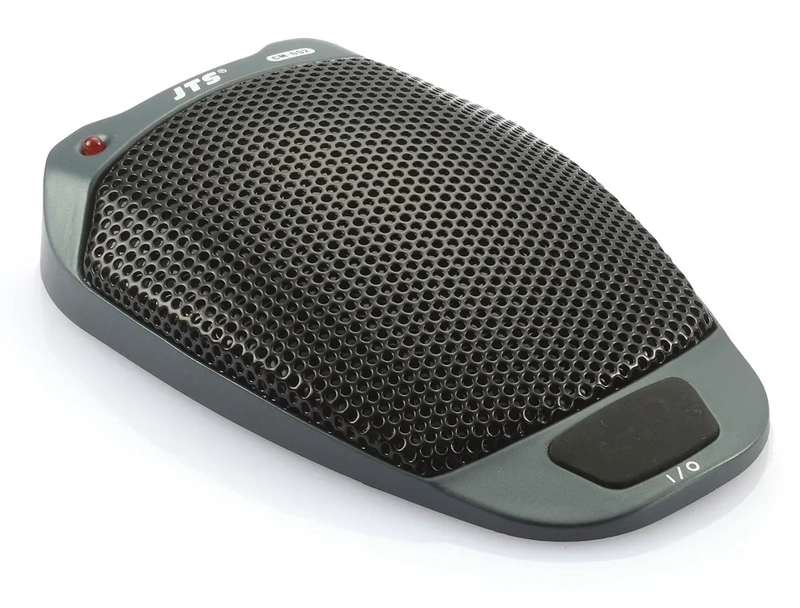

JTS CM-602 Boundary Microphone

The CM-602 is a semi-cardiod Electret boundary microphone. features On/off switch with power LED.. Elastic cartridge suspension for preventing impact sound and structure-borne noise. Requires Phantom power supply DC 48 V. Supplied With 6 m connection cable, 3-pole XLR

The CM-601 is designed for conference, house of worship, and theater applications.

The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.

The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes.

The precisely calculated circuit plus tailored capsule response ensure transparent sound quality.

Internal shock mount minimizes mechanical noise.

Frequency response: 30Hz - 12kHz

Net Weight: 88g

Output Connector: 3 Pin Male Mini XLR

Power Supply: 12-52V DC Phantom Power

Microphone Type: Electret Condenser

Current Consumption: ≤6mA

Directional Pattern: Half-Cardiod

Low Frequency Roll-Off: 80Hz, 120Hz

Impedance: 100Ω

Sensitivity (at 1kHz): -53±3 dB* (2.23mV)*0dB

Max. SPL for 1% THD: 125dB

Switches: Push On/Off, Function Selection: Push On/Off or Momentary On/Off, Low Cut
