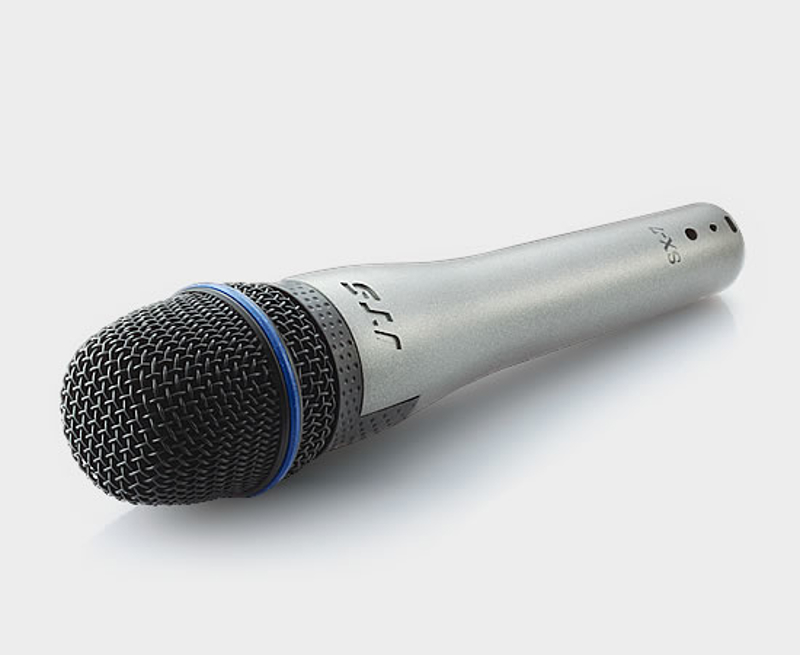

JTS SX7 Dynamic Lead Vocal Performance Microphone Mic

JTS SX-7

The SX performance series is designed with JTS newest capsule SAM-8LN. The capsule is machined and assembled on solid steel bar for maximum accuracy and therefore acoustic characters. The precise engineering assures outstanding performance. The smooth frequency response across the full spectrum and accurate directional character provide maximum gain before feedback.. The advanced mechanical design minimizes handling noise.

The SX series is ideal for large venue.
The SX-7/SX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make SX-7/SX-7S ideal for vocal,drums, guitar amplifiers and other instruments.

SPECIFICATIONS

SX-7

• Type                               Moving Coil Dynamic
• Frequency Response     50~16,500 Hz
• Polar Pattern                  Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
• Sensitivity(at 1,000Hz)   -77dB*(0.14mV)*0dB=1V/μbar
• Impedance                     250Ω
• Phasing                          Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Connector                      Three-pin professional audio connector (male XLR type)
• Case                              Metallic enamel-painted die cast metal body with hardened, Matte-finished steel grille
