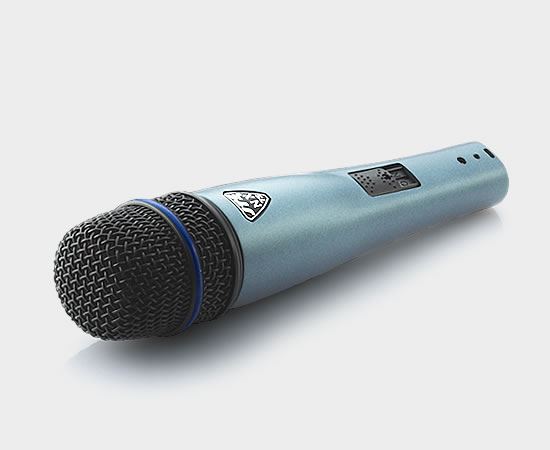

JTS NX-7S (Switched) Vocal Instrument Dynamic Mic

JTS NX-7S

The NX-7/NX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make NX-7/NX-7S ideal for vocal, drums, guitar amplifiers and other instruments. The dynamic shock mount keeps noise to a remarkable low level. The top-flat grille allows mic. cartridge closer to a sound source to maximize low frequency proximity effect.

SPECIFICATIONS

NX-7S

• Type                                Moving Coil Dynamic
• Frequency Response      50~16,500 Hz
• Polar Pattern                   Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
• Sensitivity(at 1,000Hz)    -72dB*(0.25mV)*0dB=1V/μbar
• Impedance                      600Ω
• Phasing                           Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Connector                        Three-pin professional audio connector (male XLR type)
• Case                                Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
• Net Weight                       235 grams (8.3 oz)
• NX-7S                              Equipped with Magnetic Reed Switch
