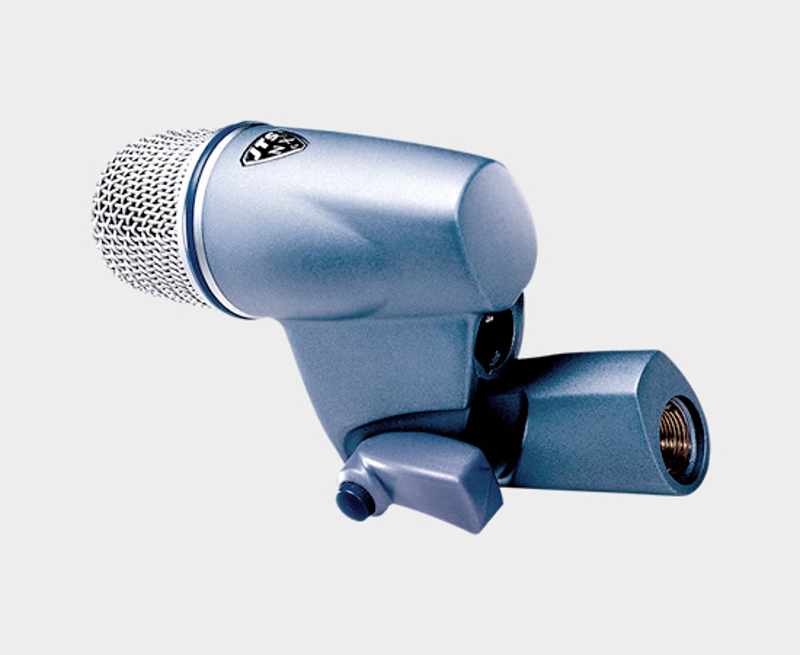

JTS NX-6
Designed to have extended frequency response and wide dynamic range, the NX-6 works excellently with drums and various instruments. The outstanding directional character together with effective shock mount prevent disturbance and make the pick-up concentrated on target sound source. User-friendly locking mount provides optimal position for pick-up.
SPECIFICATIONS
NX-6
- Type Moving Coil Dynamic
- Frequency Response 60~16,000 Hz
- Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
- Sensitivity(at 1,000Hz) -72dB* (0.25mV)*0dB=1V/μbar
- Impedance 600Ω
- Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Connector Three-pin professional audio connector (male XLR type)
- Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille Integral, dynamic locking, adjustable through
- Adjustable Locking Mount180°
- Net Weight 610 grams (21.51 oz)
- Touch Noise Super low
