Chord IEM16 16-channel PLL UHF stereo in-ear monitoring system 171.892UK Monitor
£175.00
In Stock
Add To Basket

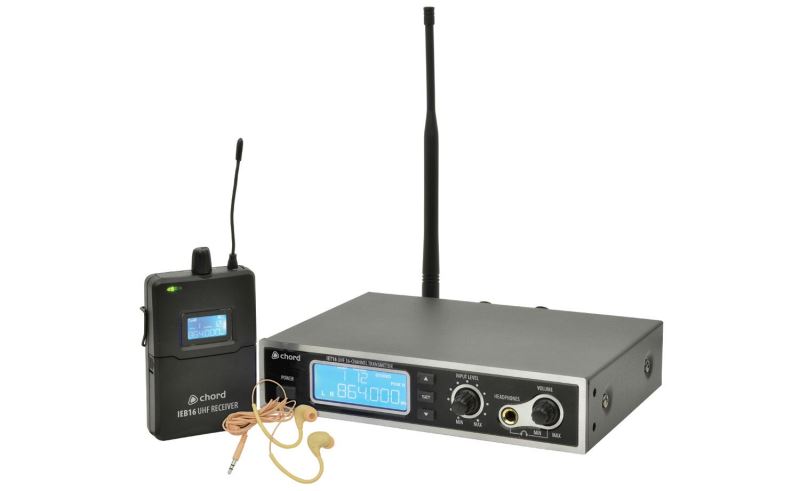

IEM16 UHF IN-EAR MONITORING SYSTEM
16-channel PLL UHF stereo in-ear monitoring system to enable a performer to hear a monitor mix directly via in-ear headphones. Eliminates the need for stage monitors and delivers faultless foldback with freedom of movement. Also, any number of beltpacks can receive from a single transmitter, allowing groups to use this system for conference, training and translation applications.
- UHF 16-channel PLL synthesized
- Backlit LCD display on transmitter & receiver
- Stereo or Mono operation
- Rack ear or rear mounted BNC antenna
- Professional in-ear headphones included
- Additional wired headphone output (6.3mm jack)
- Balanced line inputs (2 x combo)
- 19" rack mounting kit included
| Carrier frequencies | 863.1 - 864.9MHz (16 channels) |
|---|---|
| Frequency stability | 0.005% PLL |
| RF output power | 30mW |
| Bandwidth | 24MHz |
| S/N ratio | >105dB |
| THD | <0.4% @ 1kHz |
| Frequency response : ±3dB | 40Hz - 16kHz |
| Max. range | 50m |
| Power supply : transmitter | 12-18Vdc, 300mA (adaptor included) |
| Settings : transmitter | Group (1), channel, lock, power, mono/stereo |
| Controls : transmitter | Power, set, up/down, input level, phones volume, pad |
|---|---|
| Dimensions : transmitter | 44 x 210 x 175mm |
| Connections: Transmitter | DC in, antenna (BNC), combo input L + R, phones out |
| Weight : transmitter | 1.05g |
| Power supply : beltpack receiver | 3Vdc (2 x AA batteries supplied) |
| Controls : beltpack receiver | On / volume, esc, up/down, set |
| Settings : beltpack receiver | Balance, group (1), channel, lock |
| Connections: beltpack receiver | 3.5mm stereo jack |
| Dimensions : beltpack receiver | 110 x 65 x 25mm |
| Weight : beltpack receiver | 98g (no battery) |
